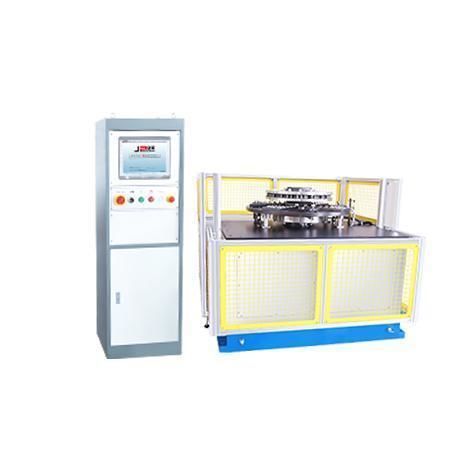

Horizontal balancing machine

dynamicfor brake discsfor wheels

Application
This machine is designed for dynamic balancing of large disc-shaped workpieces such as locomotive wheels and brake discs. It supports rotating mass inspection and imbalance correction adapted to rail industry production and maintenance environments.

Features

• Electronic measurement system with comprehensive functions and a user-friendly interface.
• Automatic lifting and lowering of the workpiece to reduce impact forces during mounting and removal.
• Remote diagnosis capability for faster troubleshooting, software updates and reduced downtime.
• Automatic lifting safety door to protect personnel during operation.

Technical specifications

• Suitable for large disc-shaped workpieces (locomotive wheels, brake discs).
• Optional weight removal device available to enable on-machine mass correction.
• High-resolution electronic measurement system with configurable test sequences.
• Controlled lifting/lowering mechanism to minimise mechanical shock.
• Remote access for diagnostics and maintenance support.
• Safety interlocks and automatic door integrated for operator protection.

Options & accessories

• Weight removal device for automatic mass correction.
• Custom fixtures and adapters for specific wheel profiles.
• On-site commissioning, calibration and operator training packages.

Safety and maintenance

• Automatic safety door and interlocks to prevent access during rotation.
• Design facilitates safe access for inspection and routine maintenance.
• Remote diagnostics reduce on-site intervention and support preventive maintenance.
