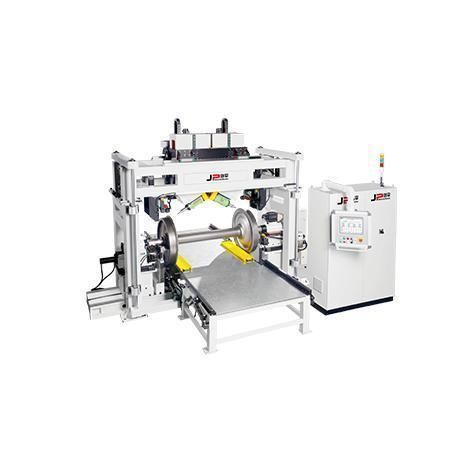

Horizontal balancing machine

dynamicgearservo-driven

Application
Specialized balancing equipment for dynamic unbalance detection and correction of rail transit wheelsets. Suitable for workshop use and production-line balancing of wheelsets.

Features

• Gearbox with fork drive matched to a servo motor drive to ensure balancing quality and measurement accuracy.
• Wide speed regulation range.
• High driving power and high operational efficiency.
• Automatic measurement of wheelset dynamic imbalance amount and angular position at the same station.
• Automatic mass removal and angle-based correction after dynamic imbalance detection.

Technical specifications

• Purpose: Dynamic unbalance detection and correction for rail transit wheelsets.
• Drive system: Gearbox with fork drive combined with servo motor.
• Measurement capability: Automatic detection of imbalance amount and angular position.
• Correction capability: Automatic mass removal and correction based on measured unbalance angle.
• Performance: Wide speed regulation range, large driving power, high working efficiency.
