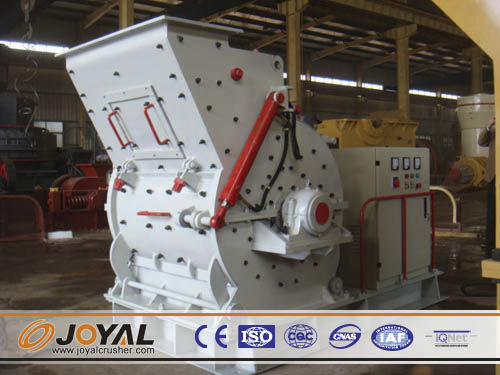

Hammer mill PC4008-75
horizontalcoarse powder

hammer mill
hammer mill
Add to favorites
Compare this product


Product application
coarse powder
Rotational speed

Min.: 800 rpm (5,027 rad.min-1)

Max.: 1,000 rpm (6,283 rad.min-1)


Min.: 10 t/h (6 lb/s)

Max.: 30 t/h (18 lb/s)


The Coarse Powder Hammer Mill PC4008-75 is noted for its features like high capacity, high crushing ration, uniform output granularity and simple structure. Apart from that, you can also expect low power consumption and a maintenance-free operation. It is imperative that the moisture of the raw material should be less than 10% - 15% to prevent the threat of material blockage. The working efficiency of the device is further enhanced by its case and components like rotor, iron bearing and grate bars. The two parts of the device, the upper and the lower are welded together after cutting. And the rest are bolted together. The case has an easily replaceable high manganese steel liner within it. Coarse Powder Hammer Mill can be mounted on spindles, complete with a rotary table and axis. There is a motor and V-belt driven spindle to work the rotor.
