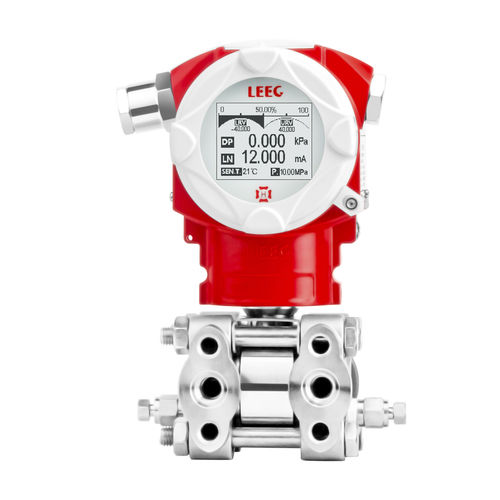

Differential pressure transmitter 2035
siliconanalogHART

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
silicon
Output
analog, HART, RS-485, Modbus, Modbus RTU
Electrical connection
terminal block
Supply voltage
24 Vdc, 32VDC, 36 VDC
Mounting
threaded, panel-mount
Process connection
NPT 1/4, NPT 1/2, M20 x 1,5
Fluid
for gas, for liquids
Material
stainless steel, aluminum
Protection level
intrinsically safe, explosion-proof, rugged, corrosion-resistant, flameproof, IP67
Applications
process, for OEM, for the petrochemical industry, for building automation
Other characteristics
smart, OEM, programmable, fast response time, economical, with display
Pressure range

Max.: 10,000,000 Pa

Min.: 200 Pa
(0.03 psi)

Precision

0.05 %

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

The second-generation LEEG2035 multi-variable transmitter is with a more advanced technical solution. Monosilicon sensor, standard configuration with Hastelloy C diaphragm material, wide media compatibility, and meets strict explosion-proof standards. The test report of the product has been recognized by CANS China and ILAC. Perfect self-diagnosis function and good human-machine interface, red backlight fault prompt function, it’s easy to find problems on site in time. LEEG 2035 is a cost-effective device which obtains measurement combinations of differential pressure, absolute pressure and temperature. It is widely used in petrochemical, natural gas, environmental protection engineering, pharmaceutical engineering, food engineering, water conservancy engineering, ocean engineering, engineering machinery, fluid equipment and other occasions. • Compound monosilicon sensor with advanced technology. • Display differential pressure, pressure and temperature value at the same time. • Standard hastelloy C diaphragm for wide medium measurement. • Perfect self-diagnosis and friendly operation interface. • Comply with strict explosion-proof standards for various applications. • Red backlight failure prompt function to find problems in time. • CNAS China and ILAC International approved test reports. • Measuring range: 200Pa-10MPa • Output signal: 4-20mA, 4~20mA/HART, RS485 Modbus • Reference accuracy: ±0.075% URL, optional ±0.05% URL • Media temperature: -40-120℃ • Measuring medium: Liquid, gas, or steam • Diaphragm material: Hastelloy C • Process connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F) • Protection class: IP67
