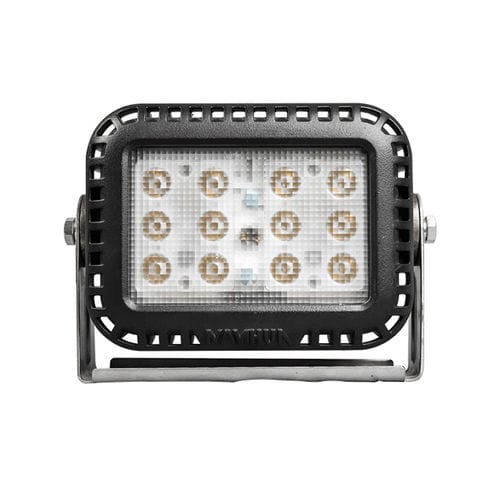

LED Work Light LW24
Features
Mining lighting technology. Product uses reliable and high efficient LED light source, has the advantages of high brightness, long lifetime, energy saving and environment friendly.
Aluminum housing structure design with special surface finish treatment. Product has excellent heat dissipation ability, good anti-vibration capacity, long time stable operating.
Product has sealed structure, water proof, corrosion and vibration resistant, impact resistant.
Adjustable mount bracket, range from 0° to 350°.
Built-in connector, easy to connect wires.
Wide input voltage range, over voltage protection.
Product operates more stable by using constant current design.
Complies with EN 55015/ CISPR 15, avoid interference.
Products description and application
LW24 series LED work lights adopt mining machinery lighting technology.
Product has features of long lifetime, safety operation, maintenance free by using brand high power LED light source, suit for the application of mining machinery (mining truck, grader, drill rig, excavators, etc.), metallurgy, ocean vessels and so on.
Standard: GB7000.1/GB2423/DIN40050/GB4208.
General Specifications
Base
Product name
LW24 LED work light
Product model
LW24
Optics
LED lifetime
≥50000h
Color temperature
Cold white: 5500K-6000K
Warm white: 2700K
Lumens
50W
Cold white: 4900lm
Warm white: 4100lm
80W
Cold white: 9900lm
Warm white: 8400lm
Electric
Rated voltage
DC18V-DC32V
Power consumption
50W/88W/100W
Lightning surge
GB/T 17626.2-2006 ±1KV
Electrostatic discharge
GB/T 17626.5-2008 ±8KV
EMC
EN 55015/ CISPR 15
Connect
Lead wire / connector
Mechanical
Body material
Aluminum
