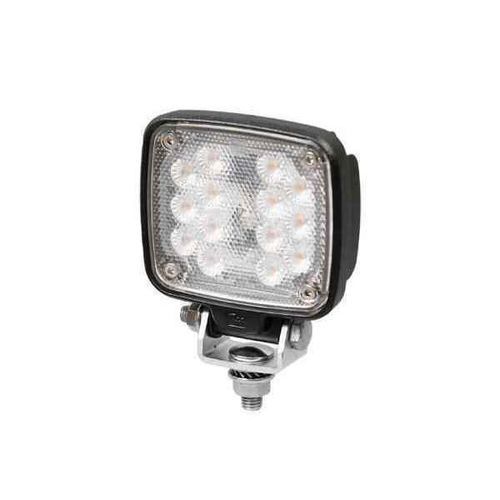

LED floodlight LW16

corrosion-resistantvibration-resistantIP69K

Product description
LW16 series LED work light uses a high-reliability LED light source for long service life and maintenance-free operation. Compact, lightweight design suitable for agricultural machinery, small construction equipment and forklifts.

Product features

• High-reliability, high-efficiency LED light source: high efficacy, long lifetime and energy saving.
• Integrated heatsink and housing design for efficient thermal management and improved shock resistance.
• Quick start and ultra-low temperature cold start capability down to -40°C.
• Adjustable mounting bracket angle for multiple installation positions.
• Wide input voltage range with over-voltage, over-temperature and short-circuit protection; automotive-grade constant-current drive for stable operation in complex power environments.
• Built-in connector for quick assembly and disassembly.

General specifications
Base

• Product name: LED Work Light
• Product model: LW16

Optics

• Light source: LED
• CCT: 2700K
• Lumens: 1500 lm
• Beam angle: 30°
• LED lifetime: ≥20000 h

Electrical

• Operating voltage: 18-32 VDC
• Power consumption: 12 W
• Wiring: Built-in connector (1 positive, 2 negative)
• ESD: IEC61000-4-2 Contact Discharge ±8 kV; Air Discharge ±15 kV
• EFT: IEC61000-4-4 input 1 kV
• Surge: Line-Line 1 kV

Mechanical

• Housing color: Black
• Housing material: Aluminum alloy
• Cover material: PC
• Surface finish: Polyester coating
• Weight: 0.35 kg
• Mounting: M10 bolt
• Operating temperature: -40°C to +70°C
• Vibration resistance: IEC60068-2-6 10 g
• Ingress protection: IEC60529 IP68 / IP69K
• Salt spray: ISO9227 NSS 48 h

Technical specifications

• Model: LW16
• Light source: LED
• CCT: 2700K
• Lumens: 1500 lm
• Beam angle: 30°
• LED lifetime: ≥20000 h
• Operating voltage: 18-32 VDC
• Power: 12 W
• Wiring: Built-in connector (1 positive, 2 negative)
• Ingress protection: IP68 / IP69K
• Operating temperature: -40°C to +70°C
• Weight: 0.35 kg
• Mounting: M10 bolt
