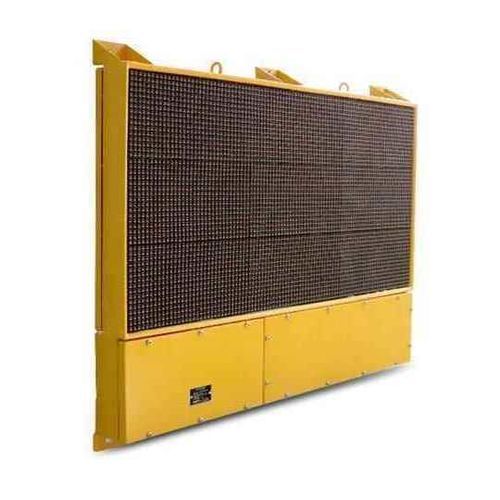

Indoor/outdoor information display panel LD123
Add to favorites
Compare this product
Characteristics
- Other characteristics
- indoor/outdoor
Description
Product overview
Key features
Applications
Technical specifications
- The LD123 is an outdoor industrial LED dot-matrix signal display designed for heavy machinery, engineering machinery and cranes.
- It integrates high-brightness outdoor LED modules with industrial communication and a sealed stainless-steel enclosure for operation in demanding environments.
Key features
- Outdoor high-brightness LED module technology for long lifespan and high visibility.
- PROFIBUS-DP communication ensuring strong EMC and anti-interference capability.
- Sealed stainless steel (316) enclosure with IP65 protection and shock resistance.
- Cable gland entry with internal terminal connections for simplified wiring and mounting.
- Anti-reflection front with viewing angle >120°.
- Dot-matrix display capable of showing digits, Latin alphabet and Chinese characters.
Applications
- Designed for signal indication on heavy machinery, engineering machinery, cranes, port equipment and construction machinery.
Technical specifications
- Product name: Industrial Signal Display
- Model: LD123
- Light source: LED
- Display color: Red and green
- Viewing angle: >120°
- Visual distance: >50 m
- Image resolution: 10 x 10
- Pixel diameter: Φ5
- Operating voltage: AC100V - AC240V
- Refresh rate: >15 Hz
- Communication: PROFIBUS-DP
- Operating temperature: -30°C ~ +70°C
- Relative humidity: 10% ~ 95% (no condensation)
- Material: Stainless steel 316
- Weight: 35 kg
- Ingress protection: IP65
