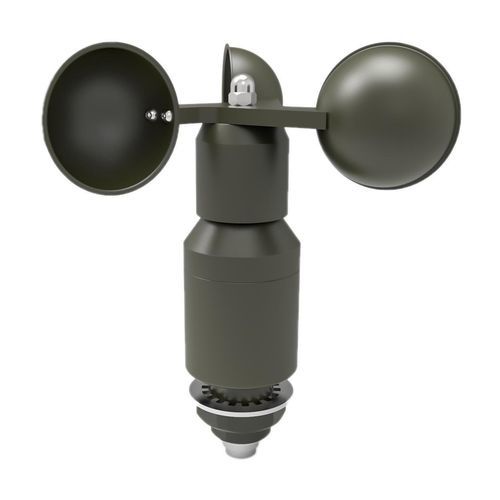

Cup anemometer FA19

IP66for marine applicationsmaintenance-free

Overview
FA19 is a maintenance-free offshore wind speed sensor designed for operation in severe marine corrosion environments (C5-M). Special corrosion-resistant bearings and an all-metal 6061 aluminium alloy body with hard anodized treatment provide resistance to corrosion and abrasion. Multiple straight-through and staggered non-contact labyrinth seals with optimized cavity aspect ratios ensure IP66 ingress protection. The sensor is suitable for accurate wind measurement in harsh conditions such as strong winds, sandstorms and marine environments.

Key features

• Non-contact magnetic sensing with an imported magnetic sensor chip for high accuracy and strong EMI immunity.
• Optimized multiple straight-through and staggered labyrinth seals to achieve IP66.
• All-metal construction: 6061 aluminium alloy body (hard anodized); 316 stainless steel external parts.
• Special corrosion-resistant bearings rated for C5-M offshore environments.
• Fault-tolerant wiring design to prevent sensor damage from incorrect connections.
• Multi-level lightning, ESD and surge protection (IEC61000-4-2/4-5).
• Aviation socket wiring with 6-core shielded cable (4×0.5mm² + 2×1mm²).

Applications

• Offshore and onshore wind power measurement
• Ship and vessel meteorological monitoring
• Coastal and port weather stations
• Railway and highway environmental monitoring
• Disaster prevention and emergency systems

Electrical specifications

• Rated voltage: 12VDC–30VDC
• Operating current: 50mA max
• ESD: IEC61000-4-2 (Contact ±8kV, Air ±15kV)
• Surge: IEC61000-4-5 (Line-to-line ±6kV, Line-to-ground ±4kV)
• Measuring principle: Non-contact magnetic code scanning
• Wiring: Aviation socket
• Cable: 6-core shielded (4×0.5mm² + 2×1mm²)

Mechanical specifications

• Color: Hard anodized natural
• Body material: 6061 aluminium alloy, hard anodized
• Wind cup material: 5052, hard anodized
• Bearing material: special corrosion-resistant bearings
• Weight: 0.4 kg
• Mounting: Ø27–Ø30mm through-plate or G 3/4 external thread
• Operating temperature: -40°C to +70°C
• Humidity: 0–100% RH (IEC60068-2-3)
• Vibration: 5–10Hz d=3mm; 10–500Hz a=2g
• Ingress protection: IP66 (IEC60529)

Meteorological specifications

• Starting threshold: ≤0.5 m/s (at 20°C)
• Survival wind speed: >75 m/s
• Measurement range: 0–50 m/s
• Resolution: 0.1 m/s
• Accuracy: ±0.5 m/s (V<16 m/s); ±3% (16 ≤ V ≤ 60 m/s); ±5% (V>60 m/s)

Model & technical summary

• Model: FA19
• Measuring principle: Non-contact magnetic code scanning
• Rated voltage: 12VDC–30VDC
• Max operating current: 50 mA
• Protection rating: IP66
• Materials: Body 6061 aluminium (hard anodized); stainless parts 316; wind cup 5052
• Bearings: Corrosion-resistant (C5-M suitability)
• Mounting: Ø27–Ø30 mm / G 3/4 external thread
• Operating temperature: -40°C to +70°C
• Wind range: 0–50 m/s; resolution 0.1 m/s; accuracy per specification
