Stepper motor 57BYGH1.8
two-phase steppertwo-phase24 V

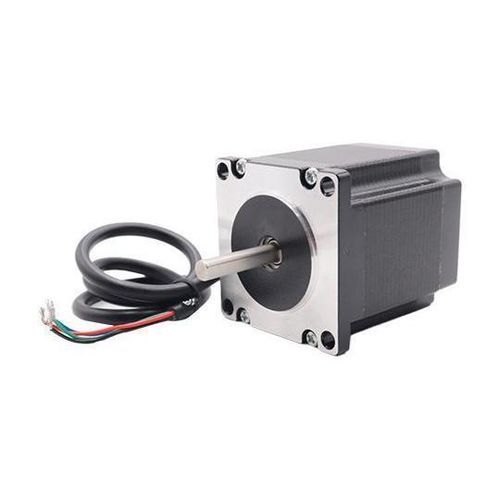

Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V
Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V
Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V - image - 2
Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V - image - 3
Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V - image - 4
Stepper motor - 57BYGH1.8 - Shanghai Siheng Motor Co., Ltd - two-phase stepper / two-phase / 24 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
stepper, two-phase stepper, two-phase
Voltage
500 V, 24 V
Intensity

Min.: 1 A

Max.: 4 A

Torque

Min.: 0.05884 Nm
(0.043398 ft.lb)

Max.: 0.31381 Nm
(0.231454 ft.lb)

Description

Overview
This is a 1.8° two-phase open-loop stepper motor from Shanghai Siheng Motor Manufacturing Co., Ltd. It is offered in 8 models and includes supporting torque-speed curves and installation details.

Available models
  • 8 models: 57BYGH241-1004 to 57BYGH2115-4004

Key features
  • Step angle: 1.8°
  • Two-phase open-loop design
  • Constant current drive (24V recommended)
  • Class B insulation
  • 2-phase excitation
  • Insulation voltage: 500 V
  • Insulation resistance: 100 Ω
  • Includes torque-speed curves and installation details

Caractéristiques / spécifications techniques
  • Rated voltage: 2.8 - 6.5 V
  • Rated current: 1 - 4 A
  • Holding torque: 0.6 - 3.2 kg·cm
  • Motor length: 41 - 115 mm
  • Weight: 450 - 1750 g
  • Insulation class: Class B
  • Drive type: constant current (24 V recommended)
  • Excitation: 2-phase
  • Insulation voltage: 500 V
  • Insulation resistance: 100 Ω
