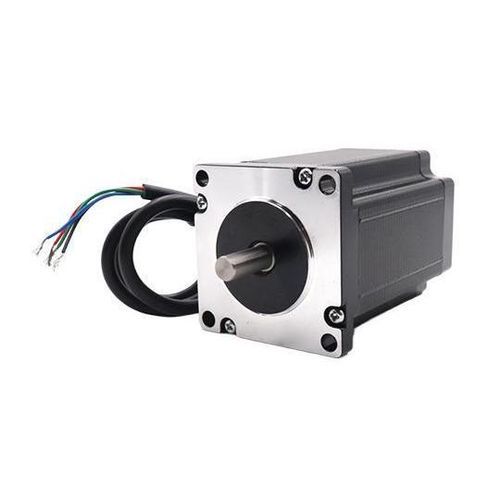

Stepper motor 60BYGH1.8

two-phase steppertwo-phase24 V

Product overview
Designed and manufactured by Shanghai Siheng Motor Manufacturing Co., Ltd., the 60BYGH1.8 series is a 1.8° two-phase open-loop stepper motor family. The range offers several motor lengths and torque ratings intended for constant-current drive systems. Technical documentation including torque-speed curves and wiring diagrams is provided to support selection and installation.

Models included

• Four models: 60BYGH255-2004 to 60BYGH2100-3004

Key features

• Step angle: 1.8° (two-phase)
• Rated voltage: 2.4–4.8 V
• Rated current: 2–3 A
• Holding torque: 1.5–3.5 kg·cm
• Weight range: 1700–4000 g
• Motor length: 55–100 mm
• Drive method: constant-current drive (recommended supply 24 V)
• Excitation: 2-phase
• Insulation class: Class B
• Insulation voltage: 500 V
• Insulation resistance: 100 Ω
• Includes torque-speed curves and wiring diagrams for installation and selection

Additional information
Listed under the category 'Stepper motor 1.8° open-loop' and referenced for common stepper motor applications (brake motor, AC motor, DC servo motor, etc.).
