DC motor 86mm series
ACstepper500 V

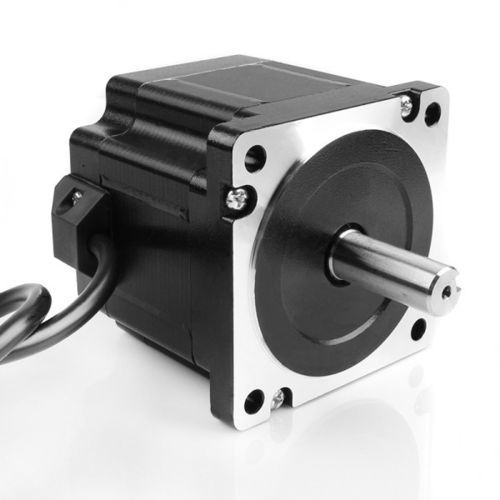

DC motor - 86mm series - Shanghai Siheng Motor Co., Ltd - AC / stepper / 500 V
DC motor - 86mm series - Shanghai Siheng Motor Co., Ltd - AC / stepper / 500 V
DC motor - 86mm series - Shanghai Siheng Motor Co., Ltd - AC / stepper / 500 V - image - 2
DC motor - 86mm series - Shanghai Siheng Motor Co., Ltd - AC / stepper / 500 V - image - 3
DC motor - 86mm series - Shanghai Siheng Motor Co., Ltd - AC / stepper / 500 V - image - 4
Add to favorites
Compare this product

Characteristics

Type
DC, AC, stepper
Voltage
500 V
Intensity

Max.: 8 A

Min.: 3 A

Torque

Max.: 12 Nm
(8.850746 ft.lb)

Min.: 2.8 Nm
(2.065174 ft.lb)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: -10 °C
(14 °F)

Description

ApplicationTextile machineryEngraving machineSecurity4G antennaSolar energyMedical equipmentIndustrial automationAutomobileOffice automationPrinting equipmentAdvertising equipment etc.Technical Specification:DimensionWiring DiagramCategory: 86mm series, Stepper MotorTags: AC motor, brake motor, DC motor, DC servo Motor, Hollow Motor, Motor Driver, stepper motor, Stepping MotorTechnical Features / Specifications:Step angle: 1.8°Frame size: 86mm (34H)High torque hybrid stepping motor

Catalogs

No catalogs are available for this product.

See all of Shanghai Siheng Motor Co., Ltd‘s catalogs
