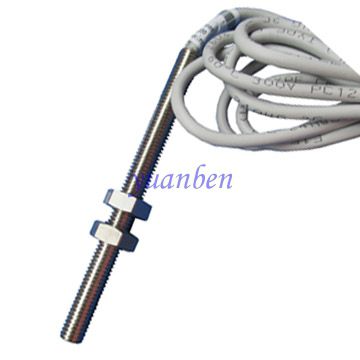

Magnetic position switch MPS-074

mechanical

1、Description MPS series proximity switch is a kind of switch type sensor. It is consist of a magnetic red switch and magnet. It can make detection without having to make the mechanical contact. The magnet moves with operation, to actuate a sealed magnetic reed switch, producing the required signal, this signal can be used to actuate audible or visual alarms as well as relay, etc. 2、Features and Applications Features: 1. No instant movements when return difference reset； 2. Wide operating voltage and big load capacity 3. Reliable, long duration of cycle and be able to work in harsh environment 4. cost effective and wide selection for many applications. Applications: ①Distance detection Detect the elevator and lifts stop position and start position. Detect the vehicle position, the setting position of the working machines, the extreme position of the moving machine or components. Detect the stop position of the, the open and close position of the valve. Detect the piston move position of the air cylinder or the hydraulic cylinder. ②Dimension control Control the metal plate punching dimension. Choose and identify the metal parts length automatically. Detect the stock height. Detect the dimension and volume of the objects.
