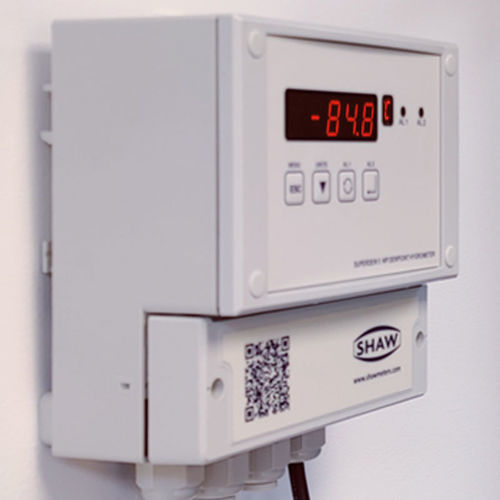

Compressed air hygrometer Superdew 3 WP

industrialwith LED displaywall-mounted

Overview
The Superdew 3 WP from Shaw Moisture Meters is a wall-mount, weatherproof (IP65 / NEMA 4X) inline dewpoint hygrometer designed for precise trace moisture measurement in process gases and compressed air. It provides durable protection against dust and water ingress for industrial environments.

Fast and reliable
Combining SHAW aluminium oxide sensor technology with digital electronics, the Superdew 3 WP delivers fast, repeatable dewpoint readings suitable for continuous process monitoring where trace moisture control is required.

Accurate
The instrument uses a SHAW ultra-high-capacitance aluminium oxide sensor offering superior stability and repeatability, with certified accuracy better than ±2 °C (±3.6 °F) dewpoint.

User configurable
Readings can be shown in °C, °F, ppm(V) or lb/MMSCF on a clear five-character LED display. Two independent, fully programmable alarm relays are provided and set points and parameters are adjustable via the front-panel keypad.

Flexible installation
The Superdew 3 WP includes an isolated 4–20 mA analogue output (adjustable span) and permits installation of the display/control unit up to 1,000 metres from the sensor, enabling flexible placement of electronics separate from the inline sensor.

Supplied ready to use
Each kit is configured prior to supply and includes the Superdew 3 WP instrument, a SHAW dewpoint sensor, a sensor holder and two metres of sensor cable for immediate installation and reliable long-term monitoring.

Key features

• Wall-mount, weatherproof enclosure, IP65 (NEMA 4X)
• User-selectable units: °C, °F, ppm(V), lb/MMSCF
• Accuracy: ±2 °C (±3.6 °F) dewpoint
• Measurement range up to -100 °C to +20 °C (-148 °F to +68 °F) dewpoint
• Universal power input 90–250 V AC (24 V DC option)
• AutoCal automatic calibration function
• Large, clear 5-character LED display with backlight
• Two fully programmable alarms adjustable from front panel
• Fully interchangeable SHAW dewpoint sensors and ranges
• Supplied with Certificate of Calibration traceable to National & International Humidity Standards

Technical specifications

• Model: Superdew 3 WP
• Enclosure rating: IP65 (NEMA 4X), wall-mount (suitable for DIN rail mounting)
• Sensor type: SHAW ultra-high-capacitance aluminium oxide dewpoint sensor (interchangeable)
• Measurement accuracy: better than ±2 °C (±3.6 °F) dewpoint
• Measurement range: up to -100 °C to +20 °C (-148 °F to +68 °F) dewpoint
• Display: 5-character LED with backlight; selectable units °C, °F, ppm(V), lb/MMSCF
• Alarms: Two independent, fully programmable alarm relays (front-panel adjustable)
• Analogue output: Isolated 4–20 mA output with adjustable span
• Power: Universal input 90–250 V AC (24 V DC option available)
• Installation: Display/control unit may be installed up to 1,000 metres from the sensor
• Supplied as kit: instrument, dewpoint sensor, sensor holder, 2 metres sensor cable
• Calibration: Supplied with Certificate of Calibration traceable to National & International Humidity Standards
• Functions: AutoCal automatic calibration available
