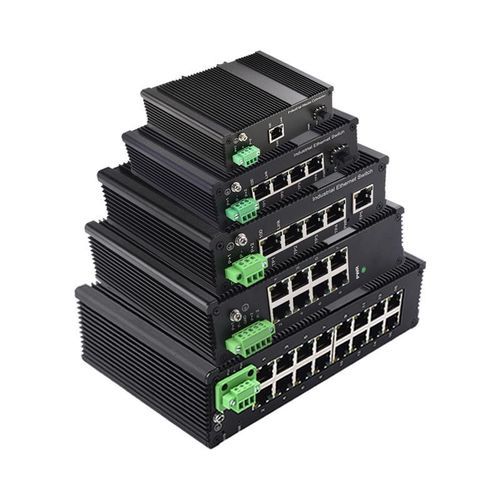

Unmanaged ethernet switch ZL-IE6051-5P

5 portsgigabitDIN rail

ZL-IE6051-5P Series are 5-port unmanaged industrial PoE Ethernet switches. This series provide 3 products to choose from and support Gigabit fiber ports, Gigabit copper ports, Gigabit PoE copper ports and Gigabit SFP, as well as multiple power supply schemes, 12~52V DC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes. The DIP switch could implement functions like jumbo frame, one-key VLAN, 100M port and flow control. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields. Standard & Protocol - IEEE 802.3 for CSMA/CD IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control PoE - The maximum power of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 Interface - Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit fiber port: 1000Base-FX, optional SC/ST/FC Gigabit SFP: 1000 Base-X SFP Indicator - Port Indicator, Power Supply Indicator, PoE Indicator Switch Property - MAC address: 8K Backplane bandwidth: 12Gbps Transmission mode: store and forward Switch time delay: <3μs Power Supply - Optional AC/DC power supply, 48~ 57VDC, 48VDC PoE or 100~240VAC 3-pin 7.62mm pitch terminal blocks - Working Environment - Operating temperature: -40~85℃
