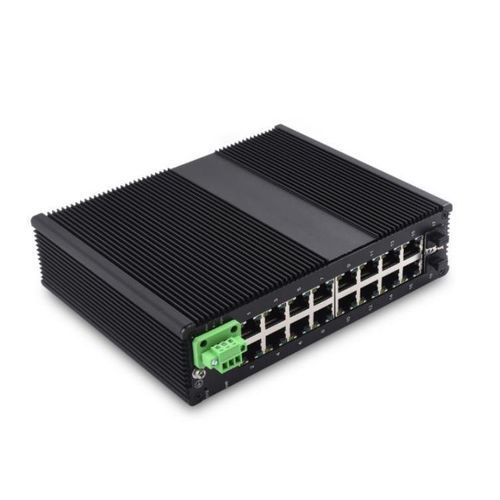

Unmanaged switch ZL-IGS2F16T

16 ports2 portlayer 2

Product Overview
The ZL-IGS2F16T series is an unmanaged industrial grade fiber optic switch that supports 2 1000MBase-X optical ports and 16 10/100/1000MBase-T adaptive RJ45 ports. The product adopts fanless, low-power design, IP40 protection level, corrugated high-strength metal shell, and more stable working performance. The product complies with CE, FCC, and RoHS standards. The working temperature range of -40 to 85 ℃ can adapt to harsh working environments.

DIN rail installation meets the needs of industrial sites and provides reliable and fast solutions for users’ Ethernet device connections. This device can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, finance and securities, customs, shipping, electricity, water conservancy, and oil fields.

Technical Specifications

• Input voltage: DC10-55V/DC48-55V
• Working temperature: -40 ℃~+85 ℃
• Shell: IP40 protection level, fanless design
• Anti static: 8KV-15KV
• MTBF: 100000 hours
• Business interface: 2*1000MBase-X SFP +16*10/1000MBase－T
• Power interface: 3P Phoenix terminal, dual power redundancy
• LED light: Power indicator light: PWR (green); Network port indicator light: yellow (100 or POE) green (Link)

Cable type and distance

• Twisted pair: 0-100m (CAT5e, CAT6)
• Single mode fiber: 20/40/60/80/100/120KM
• Multimode fiber: 550m/2KM
• Fiber optic interface: LC/SC/ST/FC

Network topology and scale

• Star topology: Support
• Bus topology: Support
• Tree topology: Support

Electrical Characteristic

• Input voltage: DC10-55V/DC48-55V 50-60HZ
• Power consumption: Non POE full load (Total power) <10W
• Layer 2 exchange
• Exchange capacity: 56G
• MAC address table: 16K
• Report buffer: 8M
• Forwarding delay: <10us
• Port feature: Cross direct adaptive
• Traffic Control: Supports
• Package length: Supports 10 Kbytes
• Storm Suppression: Support
• IP rating: IP40
• Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
• Surge protection for Ethernet ports: IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
• Radiation immunity: IEC 61000-4-3 Level 3 (10V/m)
• Instantaneous pulse anti-interference: IEC 61000-4-4 Level 3 (1V/2V)
• Conducted anti-interference: IEC 61000-4-6 Level 3 (10V/m)
• Power frequency magnetic field immunity: IEC 61000-4-8 Level 4 (30A/m)
• Voltage drop: IEC 61000-4-11 Level 3 (10V)
• EMI CLASS A
• Anti static interference: IEC 61000-4-2 Level 4 (15KV/30KV)
• Free fall: 0.5m

Environmental

• Working temperature: -40 ℃~+85 ℃
• Storage/transportation temperature: -40 ℃~+85 ℃
• Relative humidity: 5%~95%. Non condensing is not supported
• Heat dissipation method: fanless design, natural heat dissipation
• MTBF: 100,000 hours
• Size: 181X146X47mm
• Installation method: Din rail installation
• Weight: 1KG

Model Table
Model | Ethenet ports | Power Supply | POE Ports
ZL-ISG2F16T-SFP | 16*1000 MBase－T+ 2*1000MBase-X SFP, SFP Interface | -40℃-85℃ | Optional

Key Features / Technical Specifications

• Unmanaged industrial grade fiber optic switch
• 2 x 1000MBase-X SFP ports
• 16 x 10/100/1000MBase-T adaptive RJ45 ports
• Fanless, low-power design
• IP40 protection level
• Corrugated high-strength metal shell
• CE, FCC, and RoHS compliant
• Operating temperature: -40 to 85 ℃
• DIN rail installation
• MTBF: 100,000 hours
• Size: 181 x 146 x 47 mm
• Weight: 1 kg
