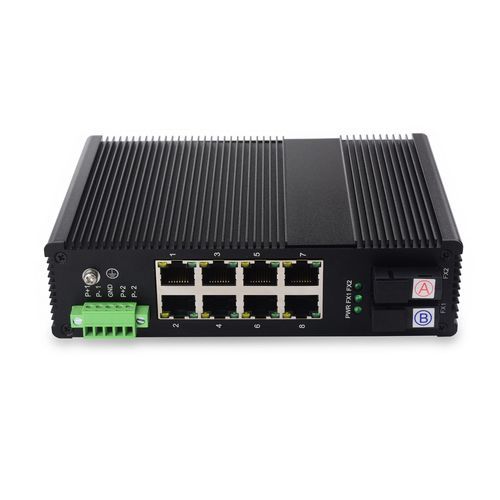

Unmanaged switch ZL-ISG2F8T

8 ports2 portlayer 2

Product Overview
The ZL-ISG2F8T series is an unmanaged industrial grade fiber optic switch that supports 2 1000MBase-X optical ports and 8 10/100/1000MBase-T adaptive RJ45 ports. The product adopts fanless, low-power design, IP40 protection level, corrugated high-strength metal shell, and more stable working performance. The working temperature range of -40 to 85 ℃ can adapt to harsh working environments.

DIN rail installation meets the needs of industrial sites and provides reliable and fast solutions for users’ Ethernet device connections. This device can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, finance and securities, customs, shipping, electricity, water conservancy, and oil fields.

Technical Specifications
Input voltage: DC10-55V/AC100-240V
Working temperature: -40 ℃~+85 ℃
Shell: IP40 protection level, fanless design
Anti static: 8KV-15KV
MTBF: 100000 hours
Business interface: 2*1000MBase-X SFP +8*10/100MBase－T
Power interface: 5P Phoenix terminal, dual power redundancy
LED light: Power indicator light: PWR (green); Network port indicator light: yellow (100 or POE) green (Link)

Cable type and distance:
Twisted pair: 0-100m (CAT5e, CAT6), 200m (10M)
Single mode fiber: 20/40/60/80/100/120KM
Multimode fiber: 550m/2KM
Fiber optic interface: LC/SC/ST/FC

Network topology and scale:
Star topology: Support
Bus topology: Support
Tree topology: Support

Electrical Characteristic
Input voltage: DC10-55V/AC100-240V 50-60HZ
Power consumption: Non POE full load (Total power)<10W
Layer 2 exchange
Exchange capacity: 20G
MAC address table: 16K
Report buffer: 1M
Forwarding delay:<10us
Port feature: Cross direct adaptive
Traffic Control: Supports
Package length: Supports 10 Kbytes
Storm Suppression: Support
IP rating: IP40
Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
Surge protection for Ethernet ports: IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
Radiation immunity: IEC 61000-4-3 Level 3 (10V/m)
Instantaneous pulse anti-interference: IEC 61000-4-4 Level 3 (1V/2V)
Conducted anti-interference: IEC 61000-4-6 Level 3 (10V/m)
Power frequency magnetic field immunity: IEC 61000-4-8 Level 4 (30A/m)
Voltage drop: IEC 61000-4-11 Level 3 (10V)
EMI CLASS A
Anti static interference: IEC 61000-4-2 Level 4 (15KV/30KV)
Free fall: 0.5m
Working temperature: -40 ℃~+85 ℃
Storage/transportation temperature: -40 ℃~+85 ℃
Relative humidity: 5%~95%. Non condensing is not supported
Heat dissipation method: fanless design, natural heat dissipation
MTBF: 100,000 hours
Size: 158X118X42mm
Installation method: Din rail installation
Weight: 0.75KG

Model Variants

Model	Ethenet ports	Power Supply	POE Ports
ZL-ISG2F8T-SFP88	8*1000 MBase－T+ 2*1000MBase-X SFP, SFP Interface	-40℃-85℃	Optional
ZL-ISG2F8T-A/B20	8*1000 MBase－T+ 2*1000MBase-X SFP, SC interface, single-mode single fiber	-40℃-85℃	Optional
ZL-ISG2F8T-SS20	8*10/1000 MBase－T+ 2*1000MBase-X SFP, SC interface, single-mode dual fiber	-40℃-85℃	Optional

Key Features / Technical Characteristics

• Unmanaged industrial grade fiber optic switch
• 2 x 1000MBase-X SFP optical ports
• 8 x 10/100/1000MBase-T adaptive RJ45 ports
• Fanless, low-power design
• IP40 protection level
• Corrugated high-strength metal shell
• Operating temperature: -40 to 85 ℃
• DIN rail installation
• Anti-static: 8KV-15KV
• MTBF: 100,000 hours
• Power redundancy supported
• Multiple fiber and copper interface options
• Wide application: smart buildings, cities, transportation, telecom, security, finance, utilities
