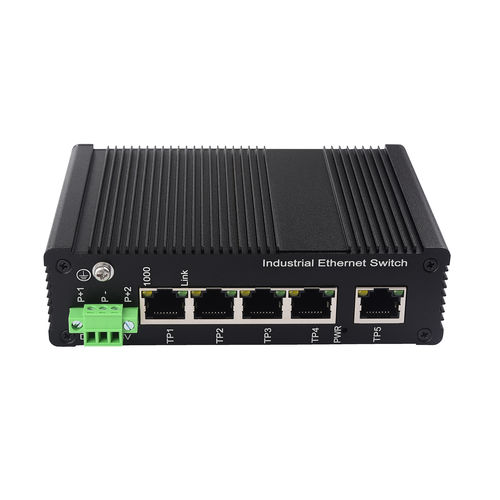

Unmanaged switch ZL-ISG5T

5 portslayer 2gigabit Ethernet

Product Overview
ZL-ISG5T is an unmanaged industrial grade switch that supports 5 × 10/100/1000MBase-T adaptive RJ45 ports. The product adopts a fanless, low-power design, IP40 protection level, corrugated high-strength metal shell, and offers stable working performance. The working temperature range of -40 to 85 ℃ allows adaptation to harsh working environments.

• DIN rail installation meets the needs of industrial sites and provides reliable and fast solutions for users’ Ethernet device connections.
• This device can be widely used in various broadband data transmission fields such as smart buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, finance and securities, customs, shipping, electricity, water conservancy, and oil fields.

Key Features

• Input voltage: DC10-55V/AC100-240V
• Working temperature: -40 ℃~+85 ℃
• Shell: IP40 protection level, fanless design
• Anti static: 8KV-15KV
• MTBF: 100,000 hours
• Business interface: 5 × 10/100/1000MBase-T
• Power interface: 3P Phoenix terminal, dual power redundancy
• LED light: Power indicator light: PWR (green); Network port indicator light: yellow (100 or POE) green (Link)
• Cable type and distance: Twisted pair cable: 0-100m (CAT5e, CAT6)
• Network topology and scale: Star topology: Support; Bus topology: Support; Tree topology: Support

Electrical Characteristics

• Input voltage: DC10-55V/AC100-240V 50-60HZ
• Power consumption: Non POE full load (Total power) < 5W
• Layer 2 exchange
• Exchange capacity: 10G
• MAC address table: 8K
• Report buffer: 1M
• Forwarding delay: < 10us
• Port feature: Cross direct adaptive
• Traffic Control: Supports
• Package length: Supports 10Kbytes
• Storm Suppression: Support
• IP rating: IP40
• Power surge protection: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
• Surge protection for Ethernet ports: IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
• Radiation immunity: IEC 61000-4-3 Level 3 (10V/m)
• Instantaneous pulse anti-interference: IEC 61000-4-4 Level 3 (1V/2V)
• Conducted anti-interference: IEC 61000-4-6 Level 3 (10V/m)
• Power frequency magnetic field immunity: IEC 61000-4-8 Level 4 (30A/m)
• Voltage drop: IEC 61000-4-11 Level 3 (10V)
• EMI CLASS A
• Anti static interference: IEC 61000-4-2 Level 4 (15KV/30KV)
• Free fall: 0.5m

Environmental and Mechanical

• Working temperature: -40 ℃~+85 ℃
• Storage/transportation temperature: -40 ℃~+85 ℃
• Relative humidity: 5%~95%. Non condensing is not supported
• Heat dissipation method: fanless design, natural heat dissipation
• MTBF: 100,000 hours
• Size: 130 × 94 × 35 mm
• Installation method: Din rail installation
• Weight: 0.5 KG

Comparison Table
Model | Ethernet ports | Power Supply | POE Ports
ZL-ISF5T | 5×10/100 MBase－T | -40℃-85℃ | Optional
ZL-ISG5T | 5×10/100/1000MBase－T | -40℃-85℃ | Optional

Technical Specifications

• Unmanaged industrial Ethernet switch
• 5 × 10/100/1000MBase-T adaptive RJ45 ports
• Fanless, low-power design
• IP40 protection, high-strength metal shell
• Operating temperature: -40 to 85 ℃
• DIN rail installation
• Dual power redundancy
• MTBF: 100,000 hours
• Size: 130 × 94 × 35 mm
• Weight: 0.5 KG
