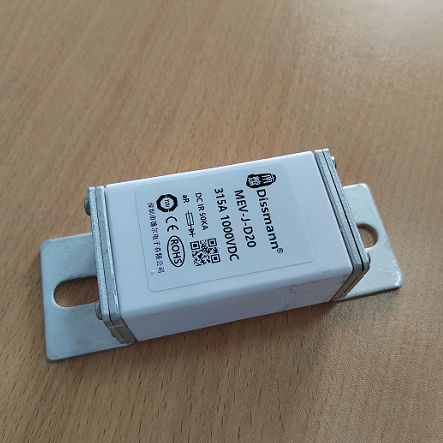

High-speed fuse-link MEV-J-D20

squareClass aRhigh-voltage

Breaking Capacity: DC50KA Application: Battery pack protection, EV Charging Supply, Energy Storage Systems, MSD, Solar Inverter, Electric Motor, Transformer Safety Standard: GB13539,IEC60269,UL248,Compliance with EU directives and RoHs, ISO8820,JASOD622 Certificate: CCC,TUV,CE,UL Breaking Capacity: DC50KA Class of Protection: aR Application: Battery pack protection, EV Charging Supply, Energy Storage Systems, MSD, Solar Inverter, Electric Motor, Transformer Installation Method: Mounting Bolt M10 recommended torque 21N·m Shenzhen Deer Electronic Co.,Ltd. was founed in 2000 years, focus on R&D, production and sales of fuse with 24 years experience. The company is high tech enterprises, small fuse and low voltage fuse standardization commitee members, to participate in the formulation and modification GB9364 and GB13539 series of national standards, has 4 invention patents and applications, 12 utility model patents. We are the only company to established the witness laboratory approved by UL/TUV in 2017. The performance test can be finished in the laboratory. And the quality inspection of all fuses is completed by our QC team.
