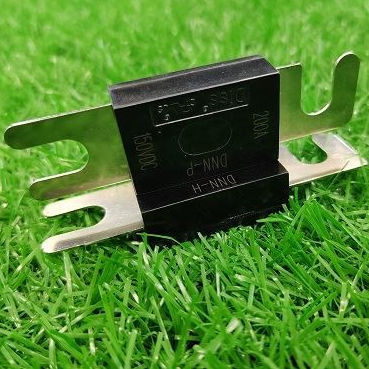

Fast-acting fuse DNN-A/X/H/P
low-voltagefor automobiles

Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles - image - 2
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles - image - 3
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles - image - 4
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles - image - 5
Fast-acting fuse - DNN-A/X/H/P - Shenzhen Deer Electronic Co.,Ltd. - low-voltage / for automobiles - image - 6
Add to favorites
Compare this product

Characteristics

Type
fast-acting
Other characteristics
low-voltage
Applications
for automobiles
Amperage

Min.: 10 A

Max.: 500 A

VDC

32 V, 58 V, 80 V, 150 V

Breaking capacity

2,700 A

Description

Dissmann DNN-A/X/H/P DC32V/58V/80V/150V fuse mainly design in line with the circuit of DC32V/58V/58V/150V and below, the ampere range is 10-500A, breaking capacity up to DC2700A, the install available in bolt M8, recommend torque: 10N·m±1 N·m. The dimension and performance conform to UL248-20, ISO8820, JASO-D622, RoHs and EU directive. Features 1. Up to DC150V protection, the max voltage we can produce only. 2. Windowless, Fully Enclosed, an arc extinguishing material inside 3. Up to 2,700 A interrupting rating 4. RoHS compliant and lead (Pb) free Application Lift trucks, scissor lifts, pallet movers, Low speed EV pack, Electric motor, Charging pile module
