Low-voltage fuse
fast-actingpowerceramic

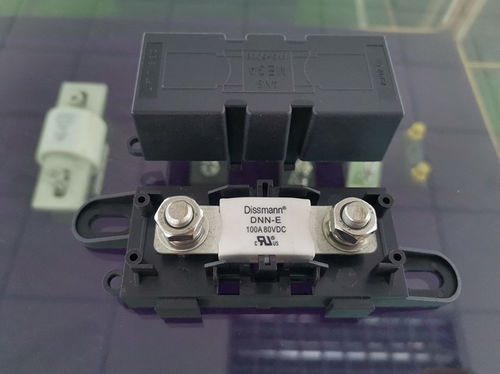

Low-voltage fuse - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / power / ceramic
Low-voltage fuse - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / power / ceramic
Add to favorites
Compare this product

Characteristics

Type
fast-acting
Other characteristics
ceramic, power, low-voltage
Applications
for automobiles, battery
Amperage

Min.: 50 A

Max.: 500 A

VDC

32 V, 58 V, 80 V

Breaking capacity

2,700 A

Service temperature

Min.: -32 °C
(-26 °F)

Max.: 82 °C
(180 °F)

Description

Satety Standard: UL248-13, ISO8820, JASO-D622, RoHs respect with EU directive 2015/863 Product size: 69*19*10mm Application: power adapters, car navigation, mobile phones, LCD TVs, notebook computers, communication equipment, instruments, tuners, wireless remote control materials, car audio equipment, household industrial electrical appliances and other electronic products Specifications Product name: Bolt down car automotive fuse Product size: 69*19*10mm Scope of application: UPS, Low speed vehicle battery, PV solar inverter, Power supply, Automotive systems, Forklift, Truck Safety certification: UL248-13, ISO8820, JASO-D622, RoHs with repect EU directive 2015/863 Product Type: F-Fast-Acting Fuse Insulating body: Ceramic Mounting: M8 or 5/16"-18 or less studs on 2" centers Features Protection circuit, stable properties Possess good electrical conductivity, low temperature resistance, high temperature resistance, corrosion resistance, and effective protection of the circuit
