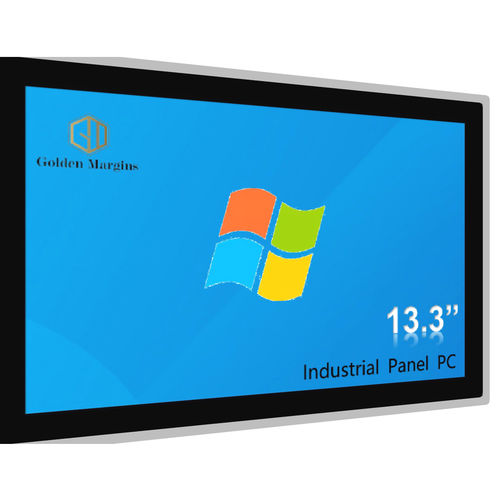

LCD panel PC GY133WINTM

PCAP capacitive touch screen13.3"1920 x 1080

13.3” capacitive touch Industrial PC panel PCAP Touch Screen Indoor Wall Mounted adopts a fanless design, and the IP65 front baffle is suitable for harsh application environments. The whole system adopts an AG cover plate and full bonding technology at the same time. The low-power consumption J1900 makes the operation more stable. The plentiful interface options and customization can be used in various fields. Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, and increase the light transmittance, also the display effect is more clear and transparent. Display Characteristics Aspect ratio - 16:9 Brightness - 350 cd/m LED Life Time - 30,000 Hour Contrast Ratio (Center of the screen) - 3000:1 Viewable area W x H - 697.4(W)x 391.8(H) Response Time - 18ms Viewing zone - horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Support Color - 16.7M colors Touch Touch accuracy - ±2mm Through-Glass - 3mm Touch scheme - EETI Mechanical Fanless design - yes MTBF - 30,000 Hour Cable management system - yes Operation temperature - 0°C – 50°C AngeStorage temperature range - – 20°C – 60°C Power Management Power supply unit - External Power supply - DC 12V Output power - 60W Rated output current - 5A Installation Method VESA - 100mm*100mm Mounted at side External Connectors DC-In - ×1 Audio(Line-out,Mic-in) - x2 Com - x2 Internal Connectors F_Panel - ×1 F_Audio - ×1 LPT - ×1 JVGA - ×1 Speaker - ×1
