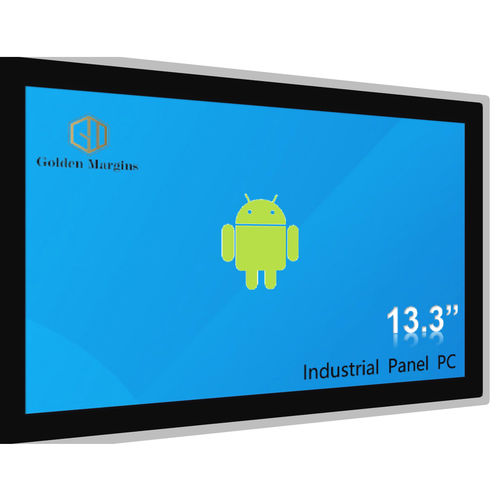

Multitouch screen panel PC GY133ANDTM

TFT LCDPCAP capacitive touch screen13.3"

All series of GM Android all-in-one panel PC machines are equipped with RK3288 processor, metal body design, steady and durable, and customized interfaces to meet customer needs. The whole system adopts a laminated process to increase the viewing angle of the product and also prevent dust and humidity. The cover glasses are etched with AG surface treatment to prevent glare。 Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent Panel PC System Network - 10/100/1000M Base-T Gigabit Ethernet Bluetooth - 4.1 battery - 3V battery (CR2032) Display Characteristics Aspect ratio - 16:9 Brightness - 250 cd/m LED Life Time - 30,000 Hour Contrast Ratio (Center of the screen) - 3000:1 Viewable area W x H - 599.6(W)x388.1 (H) Response Time - 18ms Viewing zone - horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Support Color - 16.7M colors Touch Touch points - 10 Touch accuracy - ±2mm Through-Glass - 3mm Touch scheme - EETI Mechanical Fanless design - yes MTBF - 30,000 Hour Cable management system - yes AngeStorage temperature range - – 20°C – 60°C Power Management Power supply unit - External Power supply - DC 12V Output power - 36W Rated output current - 3A Installation Method VESA - 100mm*100mm Mounted at side External Connectors DC-In - ×1 Headphone and microphone combo 3.5mm - x1 Sim card - x1 TF card - x1 Com - ×2 Internal Connectors DC IN - ×1 Serial - ×1 Speaker - ×1 IR&LED - ×1 Power Keyer - ×1 DEBG - ×1 LDVS - ×1 UART TTL - ×1 KEY - ×1 12C Control - ×1 GPIO - ×1 BL Control - ×1 EDP - ×1 SPK - ×1 MIC - ×1 PCI_E - ×1
