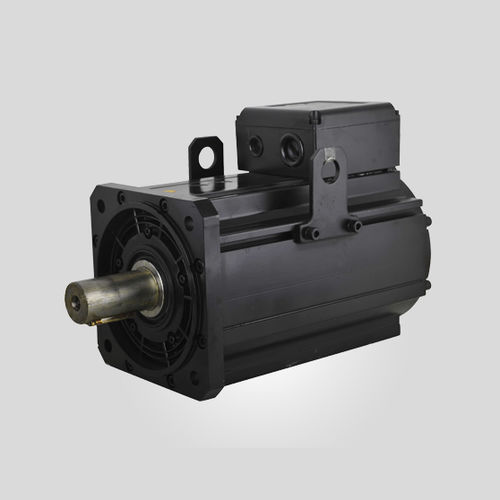

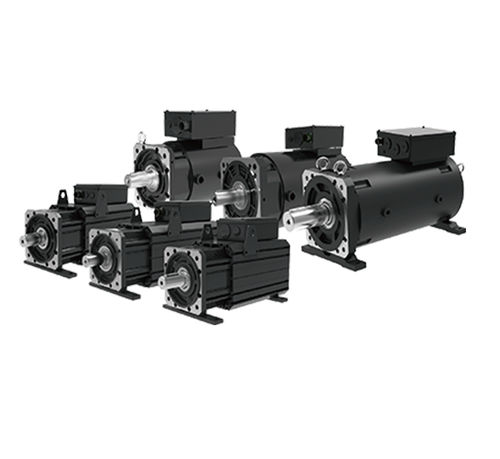

AC servomotor ISMG series

asynchronous380 Vpermanent magnet

The ISMG series general-purpose high-power servo motors are three-phase AC permanent magnet servo motors with independent cooling fans. They are available in two variants, ISMG1 and ISMG2, with the ISMG1 model supporting an optional brake. The ISMG series motors feature low temperature rise, low current, and strong overspeed capability. Their unique design with low rotor inertia ensures high responsiveness. They come with a 23-bit multi-turn absolute encoder as standard, which, when combined with Inovance servo drives, enables precise position control. These motors find wide applications in various industries, including stackers, hydraulics, metallurgy, printing, and packaging. Benefit Specially designed for intelligent injection molding flexible process control High Safety IP54 for the entire machine and IP67 for the encoder, ensuring safety and durability under various conditions Flexible encoder connection, with vibration resistance of up to 5·g Optional brake (for the ISMG1 model) PTC and KTY temperature protection as standard, ensuring high reliability throughout the service life High Precision for Accurate Control 23-bit multi-turn absolute encoder, offering an absolute positioning accuracy within ±100 arcsec and repeatability within ±30 arcsec Comprehensive Certification CE/UKCA certification Grade 2 according to China Energy Label Quick Response for Enhanced Production Efficiency Optimized topology and MTPA control algorithm, greatly improving overload capacity, with the mainstream configuration supporting over 250% of the maximum output torque Two types of inertia to meet various application requirements
