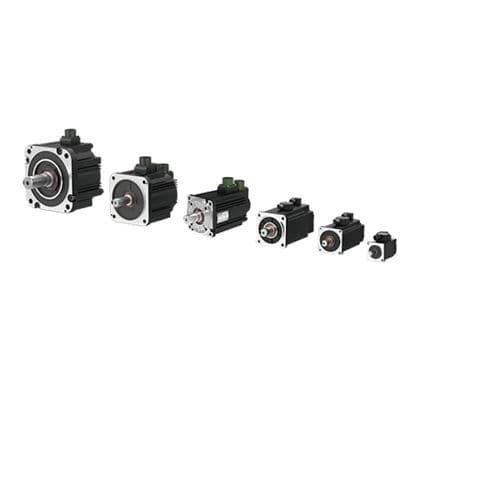

Three-phase servo motor MS1 series

400 V200 Vsmall

As the latest generation of servo motors developed by Inovance, the MS1-R-INT series servo motor carries a power range from 0.05 kW to 7.5 kW, with frame sizes ranging from 40 mm to 180 mm. It offers multiple types of inertia and speed configurations, with different types of encoders configured as required by customers. It is used for accurate position control, speed control, and torque control in industries including semiconductors, lithium batteries, silicon, machine tools, mobile phones, printing and packaging,pharmacy, textile, and display. Overview Benefit Small size Smaller footprint with torque output unchanged, max.reduction of length reaching 29% Dimensions of mounting interfaces Compatible withMS1-Z series motors Full range of motors Full range of motors Ultra-low inertia available for motors with flange size 60/80 to better fit applications requiring quick jog control; 220 V models available for motors with flange size 100/130/180 High stiffness Stiffness of typical models increased by five levels High speed Max speed of MSIH1 and MS1H4 motors with flange size 40/60/80 increased from 6000 rpm to 7000 rpm Max speed of MS1H2 motors increased from 5000 rpm to 6000 rpm Max speed of MS1H3 motors (flange size 130/180) increased from 3000rpm to 4500 rpm Note: The preceding speeds are for motors with 23-bit or 26-bit encoders. High energy-saving performance Low temperature rise Optimized electromagnetic circuit to reduce temperature rise Flange size 60 & 80: Temperature rise reduced by 20K compared with previous motors
