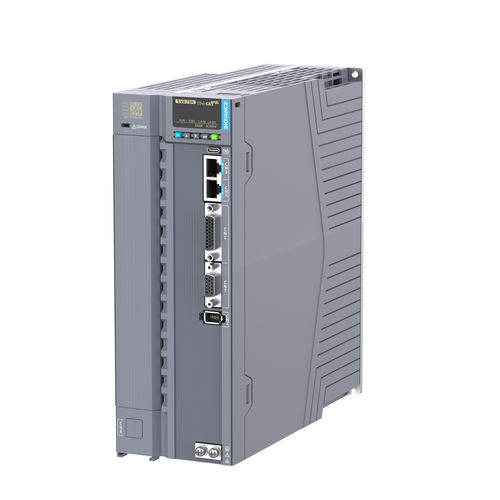

DC servo drive SV670 series

linearsingle-axisCANopen

The SV670-INT series high-end servo drives from Inovance are tailored to provide high speed, accuracy, performance, and tuning-free capabilities for high-end applications. These drives are compliant with global-leading standards, including the CE, UL, KC, EAC, UKCA and SEMI F47 certification. Overview Enhanced Control Performance The SV670-INT series standard servo drives boast a 3.2 kHz speed loop bandwidth, a significant upgrade from its predecessor, the SV660 series, giving full play to your equipment. Enhanced safety features The SV670-FS-INT model has an STO safety torque-off function, which is certificated by STO SIL3 IEC 61800-5-2 compliant. Accurate Positioning Supported by Optional Encoder The MS1-R series servo motors feature a 23-bit multi-turn absolute encoder, increasing encoder resolution by 8 times for enhanced repeatability and absolute positioning accuracy. Fully closed-loop control with ABZ quadrature pulse for accurate equipment positioning. Linear and Direct Drive Rotary Motor Control Compatibility with linear motors and DDR motors for diverse application scenarios. Robust and Reliable ‒ Designed for Harsh Environments Conformally coated PCBs are resistant to 3S2 and 3C3 environments (acc. to IEC 60721-3-3), providing further protection. Simplified Servo Commissioning The commissioning software InoDriveshop with user-friendly commissioning options; Wizard-style background Extreme Motor 20% to 30% reduction in new generation MS1-R series servo motor length to save footprint
