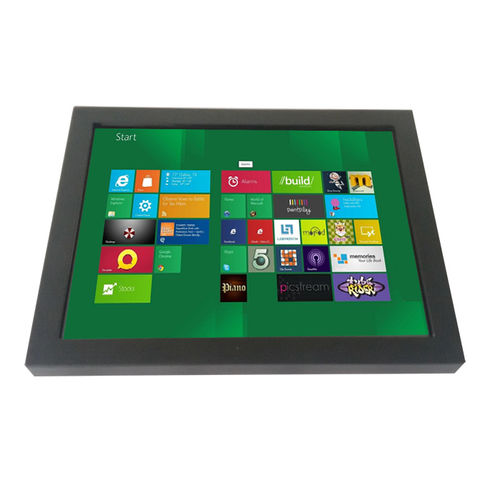

Chassis-mounted monitor ITD15CMN101

LCDprojected capacitive touchscreenresistive touch screen

-Exceptional quality and highly engineered industrial monitors -All steel construction designed for harsh and industrialenvironments -Accuracy in high-use applications -Long lasting product cycle for continuity thru all phases of project OVERVIEW ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7”~85”. Display Active Screen Size (mm) - 304.13(H)×228.1(V) Aspect Ratio 4:3 Colors 262K Brightness (cd/m2) 250 Contrast Ratio 700:1 View Angels 80/80/60/80 Operation Operating Temperature Range -10~60°C (-20~70°COptional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Power Indicator Green LED Power Input DC 12V Power Consumption 20W
