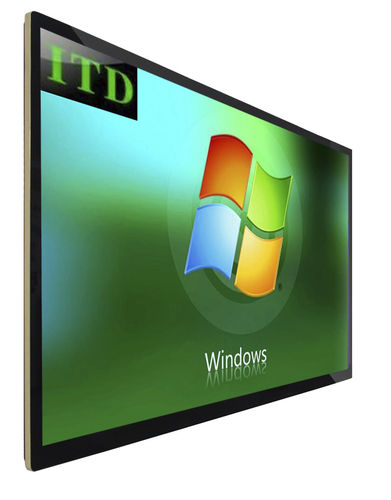

PCAP capacitive touch screen monitor ITD86OFT5P1

LCDmultitouch screenLED backlight

- All steel/aluminum construction provides rugged frame for public use environments - Ten independent touch points, plug and play - Eliminates dust and debris build-up at the edge and corners of the display - Provides improved power efficiency and reduced consumption - Responds to a light touch in activating response - Easy-to-clean surface without bezels - Long lasting product cycle for continuity thru all phases of project OVERVIEW ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for retail, kiosks and interactive digital signage. IP Rating IP65 Front Panel Screen Diagonal (Inch/cm) 86” Display Active Screen Size (mm) 1895.04(H) ×1065.96(V) Aspect Ratio 16:9 Physical Resolution 3840×2160 Maximum Resolution Supported 3840×2160 Colors 16.7M Brightness (cd/m2) 410nits Contrast Ratio 1200:1 View Angels 89/89/89/89 Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime Touch Technology Projected Capacitive Touch Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Touch Life 50,000,000times/click Surface Hardness 7H Video Input 1 × VGA 1 × DVI-I 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Operating Temperature Range -10~60°C (-20~70°C Optional) Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input AC100-240V Power Consumption 408W Side Mounting Brackets, Desktop Stand, VESA Mounting Brackets, Webcam
