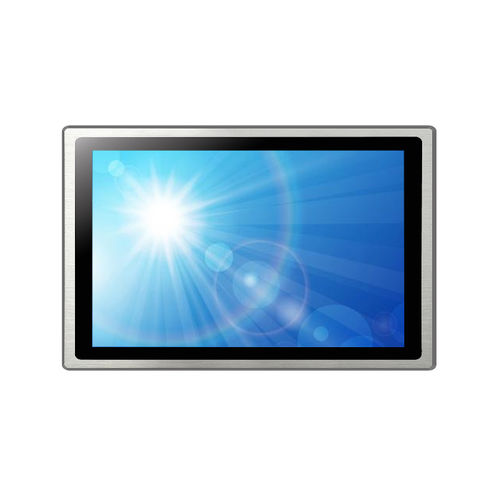

Panel-mount monitor ITD18PMG1HBX2

LCDPCAP capacitive touch screenresistive touch screen

- Optional touchscreens like resistive, PCAP - All steel construction designed for harsh and industrial environments - True flat surface, easy to clean - Easy-to-install embedded/panel mounting with clamps - Robust design with aluminum NEMA 4/ IP65 front panel - High brightness from 1000nits to 1500nits optical bonding optional - Long lasting product cycle for continuity thru all phases of project OVERVIEW Panel Mount High brightness LCD monitors are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine for indoor, semi-outdoor, outdoor applications. Screen Diagonal (Inch/cm) 18.5” Display Active Screen Size (cm) 409.8(H) ×230.4(V) Aspect Ratio 4:3 Physical Resolution 1366×768 (1920×1080 optional) Maximum Resolution Supported 1920×1080 Colors 16.7M Brightness (cd/m2) 1000 cd/m2 Contrast Ratio 1000:1 View Angels 85/85/80/80 Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime Touch Options Resistive, PCAP Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Video Input 1 × VGA 1 × DVI-I 1 × HDMI Audio 1 × PC-Audio Touch Connector 1 × USB Power Connector 1 × DC2.0 Operating Temperature Range -10~60°C Humidity Range (RH) 10-90% 24/7/365 Use Supported Power Indicator Green LED Power Input DC 12V (DC 9-36V optional) Power Consumption 28W
