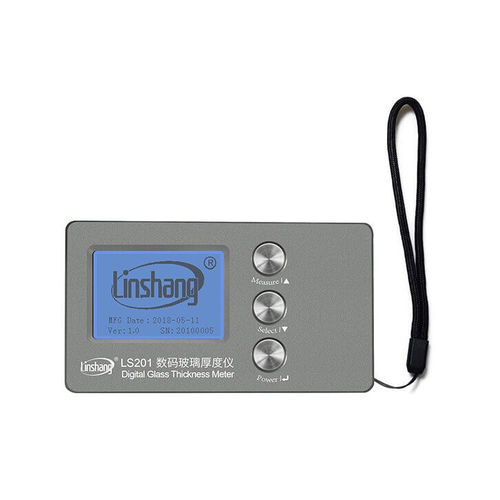

Glass thickness gauge LS201

portabledigitallaser

Digital reading, Measurement can be carried out on one side Glass thickness and air layer thickness measurement at the same time Accuracy reachs to ±0.1mm Laser reflection principle, one-side measurement of the glass thickness Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement Measurement Accuracy - ± 0.1mm Measurement Range - Glass thickness≤70mm，air layer thickness≤45mm Weight - 330g Battery - 4 AAA alkaline dry batteries Display - 240 * 160 dot matrix LCD Test Slot Size - 2mm * 38mm Dimension - 130mm×72mm×33mm (L*W*H) The digital glass thickness meter can non-destructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass High accuracy, Fast measurement The accuracy of the glass thickness meter can be 0.1mm Practical, applicable to a wide range of materials The LS201 digital glass can measure triple glazing, laminated glass and other types of glass Automatic measurement mode and manual measurement mode can be switched, the instrument can accurately test the thickness of insulating glass of various specifications.
