Laser reflection principle, one-side measurement of the glass thickness
measure the thickness of air interlayer and glass thickness simultaneous
Glass Thickness Scale 70mm, Air Space Scale 34mm

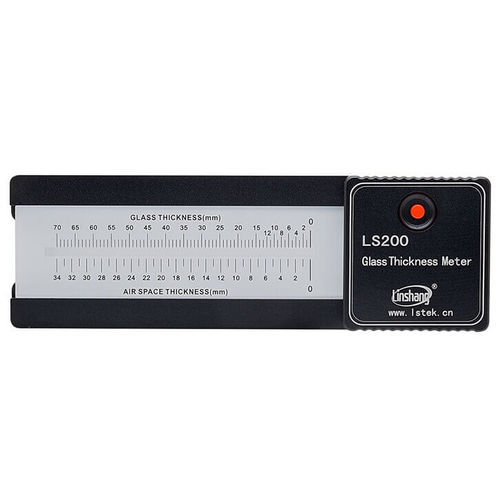

LS200 glass thickness meter can be used for thickness measurement of single-layer glass, insulating glass and cylindrical glass bottles. It is especially suitable for measurement occasions where ordinary scales or calipers cannot or are not easy to operate, such as measuring the wall thickness of glass bottles and the thickness of laminated glass windows. For the measurement of the insulating glass thickness, the thickness of each glass layer and the intermediate air layer can be measured simultaneously. The glass thickness meter is suitable for the glass thickness measurement in quality inspection, supervision, teaching, production, sales, engineering construction and other occasions.
Battery - Standard 2032 button battery
Dimension - 160mm × 55mm × 25mm (L*W*H)
Test Slot Size - 6mm * 94mm
Based on thr laser reflection principle, the meter is applicable for measuring the thickness of glass and air layer on one side which is convenient for opertation
Glass thickness and air layer thickness can be tested simultaneously. The glass thickness can be measured up to 70mm and the air interlayer can be measured up to 34mm
Measure insulated glass, which can measure air interlayer thickness and glass thickness at the same time. The following figure is an example. The calculation method of the glass and air layer thickness is as follows:
C-D = the first layer of glass thickness (5-0 = 5mm)
A-B = the second layer of glass thickness (30-25 = 5mm)
B-C = Air layer thickness (12-2.5 = 9.5mm)
