Bi-material plastic injection molding

multi-componentthermoplasticABS

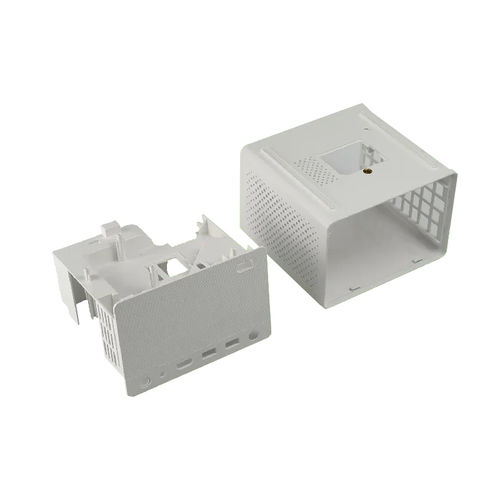

Custom Plastic Injection Mold for Laser Projector Mold Cavity: 1 Cav. Mold Steel: S136H Surface Finishing: VDI Texture + Polishing Gate: Cold runner, side gate Injection Machine: 260T Mold Size & Weight: 450*522*471 mm; 600kgs Mold Life: 300,000 shots Slider Mechanism The plastic enclosure has a complex structure with numerous round holes, square holes, and ribs. This mold design requires the inclusion of a large slider for core pulling as well as a small slider for the same purpose. The large slider is powered by a hydraulic cylinder for core extraction, whereas the small slider operates using an angled guide pillar for core pulling. As the mold opens, the core pulling process begins with the angled pin, which extracts the core at an angle. After the core pulling is finished, the large slider is then activated by the oil cylinder to complete the core extraction. When the mold closes, the small slider is first closed by the angled guide pin, after which the oil cylinder repositions the large slider back to its closed position. Solution for Sticking Issue The slider makes kiss-off with the internal angle lifter, leading to a sticking issue. To address the problem of the plastic part sticking to the slider, an ejector pin within the slider is necessary on the inner side of the part. A small spring is incorporated into the design of the slider ejector pin. Furthermore, wear-resistant plates are designed on both the inclined surface and the base of the slider to ease the assembly of the tooling and f to allow for adjustments.
