Bi-material plastic injection mold

multi-cavityovermoldingmono-cavity

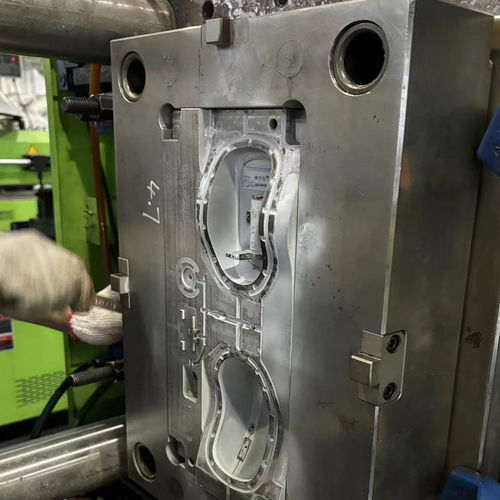

Bluetooth Mouse Shell Mold Design Mold Cavity: 2 Cav. Mold Steel: S136 Part Material: ABS Gate : Cold runner, Sub-gate Mold Component Standard: LKM Mold Life: 300,000 shots Mold design is a critical phase that defines the quality and performance of the mouse. The aesthetic surfaces of the mouse plastic shell, including the outer face and edges, require gate locations to be concealed to maintain their appearance. Therefore, a subsurface gate design is implemented. The mouse's shell features intricate undercut structures, which demand the inclusion of a sophisticated lifter mechanism to aid in the molding and ejection processes. The arrangement of ejector pins is carefully planned to ensure an even distribution of force during the ejection stage, reducing the likelihood of shell deformation or surface damage. MJX MOLD's design experts have thoroughly weighed the aspects of overall quality and ease of maintenance, delivering an optimal and finely tuned mold solution to our clients. Bluetooth Mouse Shell Mold Manufacture The precision of the mouse shell mold is exceptionally high, demanding stringent requirements for both dimensional and geometric accuracy. To guarantee seamless integration of all components, deliver a smooth and comfortable user experience, and meet the high visual quality standards anticipated for the final product. In MJX MOLD, our seasoned technical professionals who utilize state-of-the-art machining equipment to manufacture top-tier molds. The machining process involves the use of high-precision CNC machines that ensure consistent and reliable accuracy.
