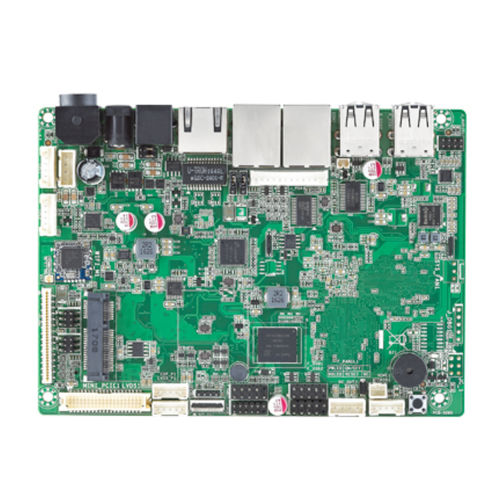

3.5" computer-on-module SV-32B54

Quad Core Cortex A17Rockchip RK3288 SoCVGA

Memory - DDR3-1333, 1/2/4GB, on board Storage - 1*eMMC 8/16/32G, 1*TF Card Expansion Interface - 1*Mini-PCIe (3G supported) OS - Android, Linux I/O Interface Ethernet 1*Realtek® 1Gbps PCIe Ethernet Controller (PHY), RJ45 1*Realtek® Wifi+BT module on board (Wifi IEEE 802.11 b/g/n, 2.4GHz, BT 3.0/4.0) Serial - 3*RS232, 1*RS232/TTL USB 9*USB 2.0 Audio - Everest® CODEC ES8316, with MIC/Line-out GPIO - 8*Programmable GPIO Feature Interface 1*Cash Drawer Port (RJ11), 1*MIPI-CSI Camera Connector Display Display Interface 1*VGA: max resolution up to 1920*1080@60Hz 1*eDP: max resolution up to 4096*2160@30Hz 1*LVDS: Single Channel 24 bit, max resolution up to 1920*1080@60Hz Multiple Display - Dual Mechanical & Environment Dimension - 146*105mm Power Input - DC 24V Temperature - Operation: 0℃~60℃, Storage: -25℃~75℃ Relative Humidity - Operation: 10%~90%, Storage: 5%~95%, non-condensing
