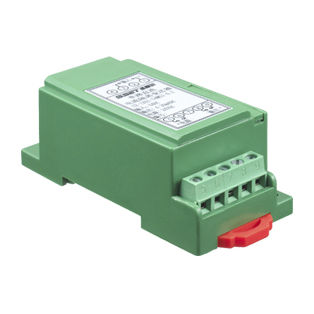

24 Vdc solid state relay CE- AK10-3*MS* series

220VACDIN rail

This product is a low-cost transducer of switch input measurement, measuring switch status of passive dry contact type. It is widely used in various industrial measurement and control system, the switch status signal of the measured is transmitted to the corresponding host through the RS485 bus interface, it is available to directly connect a variety of PLC and other equipment with the standard MODBUS protocol. - Input - Passive contacts (Dry contacts); - Withstand voltage of the passive contacts —— ≥24VDC; - Output data —— Values of 2 channels of switching signal input. (“1” means “on”, “0” means “off”.); - Output interface ——RS-485 bus. 1200m, ±15KV ESD protection; - Baudrate —— 1200, 2400, 4800, 9600, 19.2k bps; - Refreshing period —— 250 mS; - Quiescent power consumption —— <750 mW (+24V); - Power supply —— +24V or 220V optional; - Operating temperature —— -20℃～+60℃; - Installation method ----- rail or screw installation. - Installation method ----- rail or screw installation.
