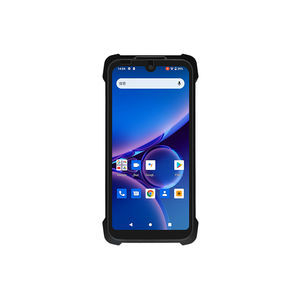

WiFi industrial smartphone SM5-T

GSMUMTS4G LTE

Product Overview
The SM5-T is a 5.7-inch rugged handheld terminal running Android 13.0. Powered by Unisoc T616 (T606 optional) octa-core CPU with Mali-G57 MP1 GPU, it offers dual storage options (4+64GB or 8+128GB), a 5.7-inch 720×1520 400-nit display with 5-point touch and stylus support, front 5MP and rear 13MP cameras with flash, a 4000mAh (3.8V, 15.2Wh) battery and global 4G LTE connectivity with WiFi and Bluetooth. Built to IP68 and 1.5 m drop resistance, the device integrates a 7-in-1 sensor suite, dual microphones with noise reduction, NFC, Type-C OTG and an optional 1D/2D barcode scanner for mobile data capture in harsh environments.

Key Features

• Android 13.0 OS; Unisoc T616 (T606 optional) octa-core 2.0GHz; Mali-G57 MP1 GPU
• Storage: 4+64GB or 8+128GB
• Display: 5.7-inch 720×1520, 400 nits; 5-point touch; stylus support
• Cameras: Front 5MP; Rear 13MP with flash
• Connectivity: 4G LTE multi-band, dual SIM (single standby), WiFi 5 (802.11 a/b/g/n/ac), Bluetooth 5.0, NFC
• Ruggedness: IP68 dust/waterproof; 1.5 m drop resistance
• Sensors: 7-in-1 suite (light, magnetic, pressure, G-sensor, distance, gyroscope, motor)
• Audio: Dual microphones (main + noise reduction) and 8Ω 1.0W speaker
• Expansion: Type-C OTG, bottom pogo-pin interface, optional 1D/2D scanner
• Physical: Compact 155×77.7×13.3mm; 230±20g; SOS emergency button

Technical Specifications (SM5-T)

• OS: Android 13.0
• CPU: Unisoc T616 (T606 optional), Octa-core 2.0GHz
• GPU: Mali-G57 MP1 @ 850MHz
• Memory: 4+64GB or 8+128GB
• LCD: 5.7 inch; 720×1520; 400 nits
• Touch: 5-point touch; stylus support
• Cameras: Front 5MP; Rear 13MP with flash
• Battery: 4000mAh; 3.8V (15.2Wh)
• WWAN: 4G LTE / 3G WCDMA / GSM (multi-band)
• GPS: BDS, GPS, GLONASS
• WiFi: 802.11 a/b/g/n/ac (2.4G / 5G)
• Bluetooth: 5.0
• NFC: 13.56 MHz
• Ports: Type-C (OTG); SIM+TF or dual SIM slot; bottom pogo-pin ×4
• Buttons: V+/V-, Power, SOS, Scan, Custom
• Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C

Applications

• Logistics and warehousing: mobile scanning and inventory management
• Field operations: inspections, maintenance and deliveries
• Pharmaceutical and healthcare logistics
• Retail and point-of-service in demanding environments

Accessories & Certification

• Included accessories: Box; Charger (5V 2A); Thimble; Wrist strap
• Optional: 1D/2D barcode scanner module (NLS-N1)
• Certifications: UN38.3, MSDS, CE
