GSM industrial smartphone SM5

WiFiBluetooth3G

Product summary

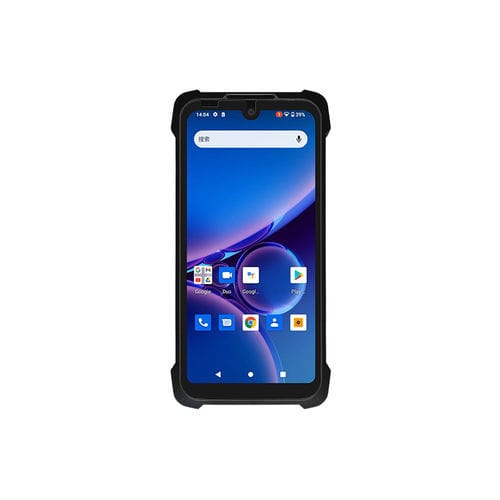

SM5 is a cost-effective rugged Android 11 handheld terminal for industrial mobile data capture. It integrates a MediaTek octa-core CPU, 5.7-inch display, 4000mAh battery, optional 1D/2D scan modules, NFC and multi-constellation GNSS. IP68 protection and 1.5 m drop resistance make it suitable for logistics, warehousing and field operations.

Product Overview
The SM5 runs Android 11.0 on an MTK MT6765 octa-core platform with IMG PowerVR GE8320 GPU. Available memory options: 4GB/64GB (standard) and 6GB/128GB (optional). The 5.7-inch 720×1520 LCD (450 nits) supports 10-point touch and stylus. Imaging includes a 13MP rear camera with flash and a 5MP front camera. The 4000mAh battery (3.8V) provides extended operation with ~2.5-hour charge time. Connectivity covers global 4G LTE (multi-band), dual SIM (single standby), Wi‑Fi 802.11 a/b/g/n/ac and Bluetooth 5.0. The device incorporates dual microphones, NFC (PN553), pogo pins and multiple physical buttons for industrial workflows.

Key Features

• Android 11.0 with MTK MT6765 octa-core CPU and IMG PowerVR GE8320 GPU
• Scalable memory: 4GB/64GB (std) or 6GB/128GB (opt)
• 5.7-inch 720×1520 display, 450 nits, 10-point touch, stylus support
• 13MP rear camera with flash; 5MP front camera; dual microphones (including noise reduction)
• 4000mAh battery; ~2.5 h fast charge; long endurance for field use
• 4G LTE multi-band, dual SIM (single standby), Wi‑Fi 802.11 a/b/g/n/ac, Bluetooth 5.0
• Optional 1D/2D barcode scanners (NLS-N1, M1, SE2707)
• Rugged: IP68 dust/waterproof; 1.5 m drop resistance; operation in wide temperature range

Technical Specifications (SM5)
OS: Android 11.0
CPU: MTK MT6765 octa-core (2.3GHz — 4x @1.8GHz + 4x @2.3GHz)
GPU: IMG PowerVR GE8320
RAM/ROM: 4GB/64GB (std); 6GB/128GB (opt)
Display: 5.7 inch; 720×1520; 450 nits; 10-point touch; stylus support
Camera: Rear 13MP + flash; Front 5MP
Battery: 4000mAh (3.8V); charging ~2.5 h; playback ~14 h (conditions apply)
WWAN: 4G LTE / 3G / GSM (multi-band)
GNSS: BDS, GPS, GLONASS
Wi‑Fi: 802.11 a/b/g/n/ac (2.4G & 5G); Mobile AP
Bluetooth: 5.0
NFC: 13.56 MHz; PN553
Sensors: Ambient light, magnetic, pressure, G-sensor, proximity, accelerometer, gyroscope
I/O: Type-C (OTG), SIM/TF or dual SIM slot, pogo pins ×4
Protection: IP68; 1.5 m drop resistance
Dimensions & Weight: 155×77.7×13.3 mm; ~240 g
Certifications: UN38.3, MSDS, CE
Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C

Application Scenarios

• Logistics and transportation: handheld scanning and tracking
• Warehouse management: inventory and stock control
• Field data collection: inspection, maintenance and surveys
• Agricultural monitoring and on-site data capture

Technical characteristics

• Model: SM5
• OS: Android 11.0
• CPU: MTK MT6765 octa-core (2.3GHz)
• Display: 5.7" 720×1520, 450 nits
• Memory: 4GB/64GB (std); 6GB/128GB (opt)
• Camera: Rear 13MP + flash; Front 5MP
• Battery: 4000mAh (3.8V)
• Connectivity: 4G LTE, Wi‑Fi a/b/g/n/ac, Bluetooth 5.0
• Positioning: BDS, GPS, GLONASS
• NFC: PN553 (13.56MHz)
• Ruggedness: IP68; 1.5 m drop resistance
• Size & Weight: 155×77.7×13.3 mm; ~240 g
• Interfaces: Type-C OTG; SIM/TF slot; pogo pins ×4
