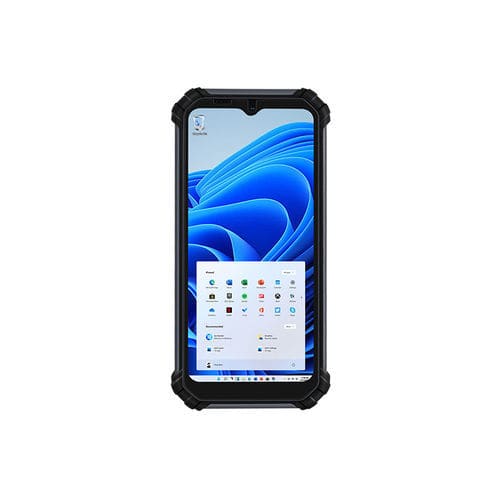

Windows 11 handheld computer SH6

Intel® Processor N100GNSSBluetooth

Product overview
The SH6 is a 6.5-inch rugged handheld terminal powered by an Intel N100 quad-core processor (1.8GHz, turbo up to 3.4GHz) and shipped with Windows 11 Pro (Home/IoT optional). It offers configurable RAM and storage, a 6.5-inch 720×1600 display (380 nits), 5MP front and 8MP rear cameras, and a 5000mAh (7.6V) battery with approximately 3-hour charging time and about 4.5 hours of video playback under specified conditions. The device supports 4G LTE, Intel Wi‑Fi 6 AX201, Bluetooth 5.2, NFC, multiple barcode scanning module options, IP65 protection and 1.2 m drop resistance. Designed for industrial portable data collection and mobile workflows in logistics, warehousing and field operations.

Key Features

• Operating system: Windows 11 (Pro; Home / IoT optional)
• CPU: Intel N100 (Quad Core, 1.8GHz; turbo up to 3.4GHz) with UHD Graphics (24 EUs)
• Flexible RAM/Storage: options from 8GB/256GB up to 16GB/512GB
• Display: 6.5-inch, 720×1600, 380 nits, 10-point touch
• Battery: 5000mAh (7.6V), ~3-hour charge time; example usage: ~4.5 hours video playback (50% volume, 60% brightness)
• Connectivity: 4G LTE (FDD/TDD band support), Intel Wi‑Fi 6 AX201, Bluetooth 5.2, NFC (13.56 MHz, ISO14443 Type A)
• Multiple barcode scanning options: NLS-N1, Zebra SE5500, Zebra SE4710, SE655 (1D optional)
• Durability: IP65 (dust/waterproof), 1.2 m drop resistance, operating temperature -20°C to 55°C
• I/O and expansion: Dual USB 3.0, full-featured Type-C (20W fast charge), SIM card slot, TF card slot, bottom 8-pin pogo pin for docking/expansion
• Compact dimensions: 178.3×83×23 mm; weight ~460 g
• Designed for industrial data capture in logistics, warehousing and field operations

Application Scenarios

• Smart logistics management (warehouse, distribution)
• Industry 4.0 data collection and field operations
• Retail operations and inventory management
• Mobile barcode scanning and on-site data capture

Technical specifications

• OS: Windows 11 Pro (Home / IoT optional)
• CPU: Intel N100 (Quad Core, Quad Threads; 1.8GHz, turbo up to 3.4GHz)
• GPU: UHD Graphics (24 EUs)
• RAM/ROM: 8GB/256GB (base); optional 8GB/512GB, 16GB/256GB, 16GB/512GB
• LCD: 6.5 inch; 720×1600; 380 nits
• Touch screen: 10-point capacitive touch
• Camera: Front 5MP; Rear 8MP
• Power & Battery: 5000mAh; 7.6V; charging time ~3 hours; example usage time: ~4.5 hours (50% volume, 60% brightness, local 1080P video)
• WWAN: FDD_LTE B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE B40; WCDMA B1/B2/B4/B5/B8; GSM B2/B3/B5/B8; Module: SLM770A (EC25-AUX for North America)
• GPS: BDS, GPS, GLONASS
• WiFi: 802.11 a/b/g/n/ac/ax; Intel Wi‑Fi 6 AX201 (WiFi/Bluetooth combo)
• Bluetooth: Version 5.2
• NFC: 13.56 MHz; range 1–3 cm; ISO14443 Type A
• MIC: Sensitivity -32±2 dB; Output impedance 2.2 kΩ ×1
• Speaker: 8Ω 1.0 Watt
• Sensors: Ambient light sensor; G-sensor (accelerometer)
• Size: 178.3 × 83 × 23 mm
• Weight: 460 ± 20 g
• Language: Multi-language support
• Interface In/Out: Type-C ×1 (full-featured; quick charge 20W); SIM card slot ×1; TF card slot ×1; USB 3.0 ×2; bottom 8PIN pogo pin
• Buttons: Volume +/-, Power, Scan; 2 customizable buttons
• 1D/2D Barcode: Optional modules: NLS-N1, Zebra SE5500, Zebra SE4710, SE655 (1D optional)
• Accessories (standard): Retail box, 20W charger, hand strap, screws & screwdriver; (optional) docking station
• Multimedia (hardware decoding): Photo: BMP, JPG, GIF, PNG; Video: MPEG1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P); Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)
• Ingress protection: IP65; drop resistance 1.2 m
• Temperature: Storage -40°C to 60°C; Operation -20°C to 55°C
