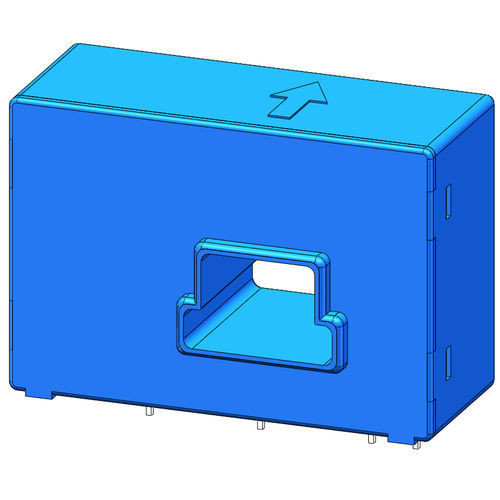

Closed-loop Hall effect current sensor SCB31

Product Details
SCB31 Series Close Loop Hall Current Sensor is a new generation closed loop current sensor based on Hall effect principle, it can accurately measure DC, AC and pulse current and other various irregular waveforms current in electrical isolation conditions. Perforations in the form of a square type, use for copper connections, it is widely used in inverters, power supply, DC panel and welding machines etc.

Technical Data

• Nominal Rms Current (Ipn): ±100AT / ±200AT
• Measuring Range (Ip): 200AT / 420AT
• Road Resistance Rmax: 20~80Ω / 12~70Ω
• Output current: ±50mA / ±100mA
• Turns Ratio: 1:2000
• Measuring Resistance: 40Ω
• Working voltage: DC ±12V or ±15V (±5%)
• Accuracy @ Ta=25°C: ±0.5% FS
• Linearity @ Ta=25°C: ±0.1% FS
• Offset current: < ±0.2mA / < ±0.1mA
• Offset temperature characteristics: < ±0.2%/°C
• Themal drift of Vo: Typical values ±0.1mA, maximum ±0.5mA / Typical values ±0.05mA, maximum ±0.25mA
• Di/Dt following accuracy: >100A/us
• Bandwidth: DC ~100kHz
• Response time: < 1uS
• Hysteresis offset: < 0.5mA (if=F.S. 0<--- --->Nominal RMS Current)
• Withstand voltage: 3kVrms/50Hz/min
• Current consumption: 10mA + output current
• Operating temperature: -40~+125°C
• Storage temperature: -40~+125°C

Dimension (mm)

• Size error: ±0.5mm
• Primary aperture: □17*4.5+13*6.5mm
• Pinpoint output: □0.64*0.56mm*4, Recommended PCB cut-out: 0.9mm
• The IP indication direction is the positive direction of the current
• Incorrect wiring may cause damage to the sensor

Features / Technical Specifications

• Closed loop Hall effect current sensor
• Measures DC, AC, pulse and irregular waveform currents
• Electrical isolation
• Square perforation for copper connections
• Applications: inverters, power supply, DC panel, welding machines
• Nominal RMS current: ±100AT / ±200AT
• Measuring range: 200AT / 420AT
• Output current: ±50mA / ±100mA
• Turns ratio: 1:2000
• Working voltage: DC ±12V or ±15V (±5%)
• Accuracy: ±0.5% FS
• Linearity: ±0.1% FS
• Bandwidth: DC ~100kHz
• Response time: <1uS
• Operating temperature: -40~+125°C
