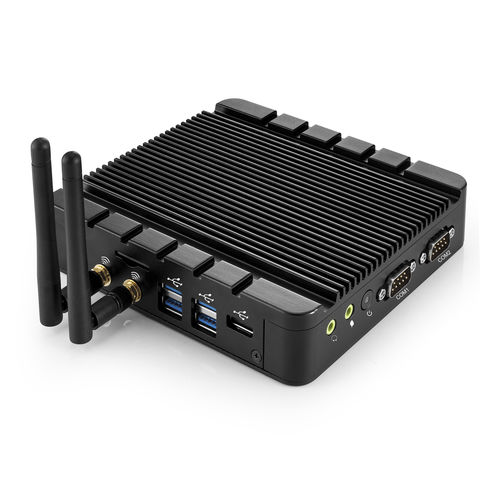

Box PC NIS-A986

quad-coreIntel® Celeron® J3455RS-232

BIOS - 64Mb UEFI BIOS, support wake-up and boot-on-power, external CMOS battery Capacity - MAX 16GB Socket - 1*SODIMM slot+ Onboard 4GB DDR3L RAM Display - Graphic Controller - Integrated Intel® HD Graphics 500 graphic, up to 750MHz,built-in 12 Eus unit graphic media accelerator DirectX 12,Pixel Shader 5.0 Support H.264@Level 5.2,HEVC(H.265),JPEG,VP8,VP9 hardware decoding VGA - Max. Resolution: 2K HDMI - 2* HDMI port, max. resolution: 4K@30Hz, support audio output & Blu-ray & HD display Three Display - Three Synch. & Asynch. Display LAN - Controller - LAN1: RTL8111E GbE network, RJ45 LAN2:RTL8111E GbE network, RJ45 Support wake-on-Lan / PXE functions Audio - Controller - Realtek HD ALC662 audio decode Super I/O - Controller - NTC6102 SIO H/W Monitor - Watchdog Timer - 0-255 sec., provide Watchdog program Temp. Monitor - Support CPU /Motherboard/ HDD temp. monitoring GPIO - 8 bit, provide routine as reference, freely-defined I/O,3.3V24mA, integrated in the DB9 of COM1/2 3G UIM slot Storage - M-SATA - 1*Full-size m-SATA scoket, Max. transmission rate: 3Gb/s EMMC - KINGSTONE 32G EMMC optional Power - Power Type - AT/ATX power mode optional,DC9-19V input, support power reverse and over-voltage protection F_PANEL /LED - LED - Switch with LED HDD/POWER LED Environment - Operating Temp. - -20°C ~ 70°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity,non-condensing Storage Humidity - 0% ~ 90% relative humidity,non-condensing Formfactor - Dimensions Weight Certificate - FCC CLASS B, CE, RoHS, 3C
