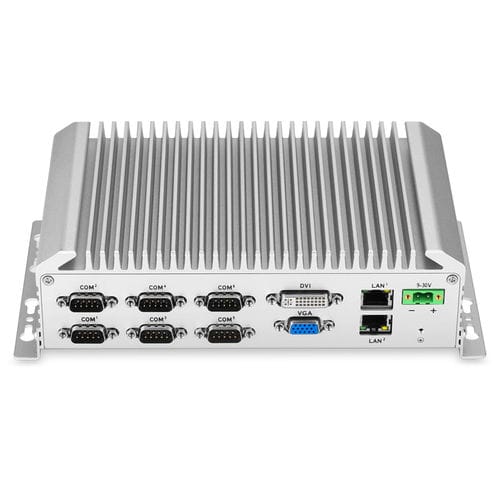

Box PC NIS-S991

Intel® Skylake ProcessorIntel® Kaby Lake ProcessorEthernet

CPU Package - BGA On Board Chipset - SOC BIOS - System BIOS: SPI BIOS Memory - Architecture - Dual channel DDR3L Capacity - Max. 32GB Display - Graphic Controller - Intel Integrated graphic card VGA - Max. resolution: 2K@60Hz DVI - Max. resolution: 4K@60Hz Ethernet - Controller - LAN 1:Intel I211 GbE LAN（Optional POE） LAN 2:Intel I211 GbE LAN（Optional POE） Super I/O - Controller - NT6106，support system temp. monitoring Watch Dog Timer - 0-255sec., providing Watch Dog program Audio - Controller - Realtek HD ALC662 audio decoder (right & left channel + MIC) support 4000V surge protection, RS485 support 3KV isolation protection,DB9 port COM5-COM6 3-wire RS232TX/RX signal, support 4000V surge protection, DB9 port COM7-COM10 RS232/485 optional (jumper setting), support 4000V surge protection GPIO - DB15 male,12bit,program available,freely-defined I/O,3.3V@24mA Expansion Bus - Mini-PCIe - 1* full-size Mini-PCIe socket, support PCIe & USB device UIM Scoket - 3G UIM Card socket Storage - SATA - 1*standard 7Pin SATA-III& power connector,trasmission rate:max.3Gb/s M-SATA - 1*full-size Mini-PCIe socket, support m-SATA SSD,trasmission rate:max.3Gb/s Power - Power Type - AT/ATX(optional),DC9-30V extended voltage input, support power reverse & over-voltage protection. Power Consumption - Support max.50W（Including POE） Other - POWER LED/HDD LED POWER BUTTOM Environment - Operating Temp. - -20°C ~ 60°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Formfactor - Dimensions - 215 x 136 x 50mm Weight Certificate - FCC, CE, RoHS
