TFT LCD display module YX28076A

IPScolorhigh-resolution

Product overview

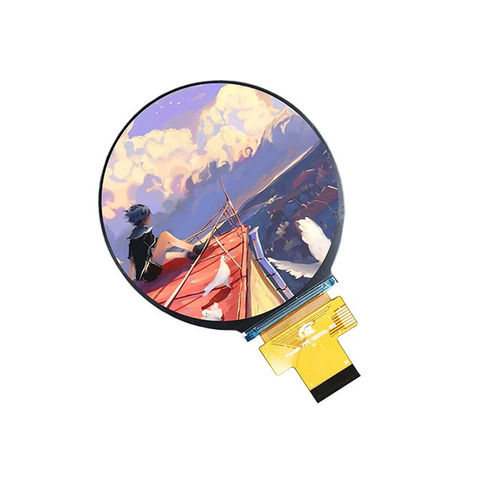

The YX28076A is a 2.76-inch high-resolution round TFT-LCD display module with 480×480 RGB resolution and a 3SPI + 18-bit RGB interface. It is driven by the ST7701S controller and uses IPS (All O'Clock) technology to provide wide viewing angles and consistent color reproduction. The module is intended for smart home products, industrial control systems, medical devices, wearable electronics and embedded HMI applications.

Key features
480×480 RGB resolution; 2.76" circular transmissive TFT-LCD; ST7701S driver IC; 3SPI + 18-bit RGB interface; IPS (All O'Clock) viewing; White LED × 4 backlight; compatible with common MCUs, ARM processors and embedded platforms.

Basic specifications (table)
Item | Specification
Display size | 2.76 inch
LCD type | TFT-LCD, transmissive
Resolution | 480 (RGB) × 480
Active area | 70.128 × 70.128 mm
Outline dimensions | 73.03 × 76.48 × 2.26 mm
Pixel pitch | 0.1461 × 0.1461 mm
Viewing direction | All O'Clock
Driver IC | ST7701S
Interface | 3SPI + 18-bit RGB
Backlight | White LED × 4
Analog operating voltage (VCI) | 3.2 V typ.
Logic operating voltage (IOVCC) | 1.8 V typ.

Mechanical drawing
Mechanical drawing and module outline are provided for integration and mounting reference (outline dimensions: 73.03 × 76.48 × 2.26 mm; active area: 70.128 × 70.128 mm).

Optical characteristics (table)
Parameter | Typical
Resolution | 480 × 480
Contrast ratio | 1200 : 1
Color gamut | 60%
Brightness | 500 cd/m²
Luminance uniformity | 80%
Viewing angle (CR ≥ 10) | 80° / 80° / 80° / 80°
Response time | 30 ms

Operating conditions (table)
Item | Range
Operating temperature | -20°C ~ +70°C
Storage temperature | -30°C ~ +80°C
Humidity | ≤90% RH (60°C)

Applications
Smart control panels, healthcare devices, AI terminals, IoT products, wearable devices, industrial embedded equipment and other HMI applications.

Technical specifications

• Model: YX28076A
• Display size: 2.76 inch round
• Resolution: 480 × 480 (RGB)
• LCD type: TFT-LCD, transmissive
• Viewing: IPS, All O'Clock
• Driver IC: ST7701S
• Interface: 3SPI + 18-bit RGB
• Backlight: 4 × White LED
• Active area: 70.128 × 70.128 mm
• Outline dimension: 73.03 × 76.48 × 2.26 mm
• Analog VCI: 3.2 V (typ.)
• Logic IOVCC: 1.8 V (typ.)
• Brightness: 500 cd/m² (typ.)
• Contrast ratio: 1200:1 (typ.)
• Operating temperature: -20°C to +70°C
