TFT LCD display module YX025Z6M-J80

IPScolorgraphic

Overview

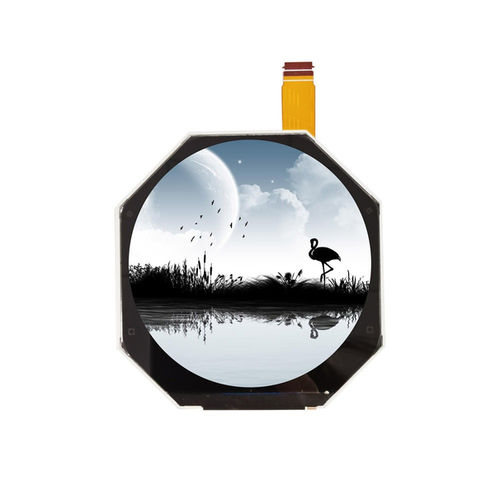

The YX025Z6M-J80 is a 2.47-inch high-resolution round TFT LCD display module featuring 480×480 RGB resolution and a 2-lane MIPI DSI interface. It is designed for wearable electronics, smart home devices, medical instruments, industrial HMIs, and embedded applications requiring a premium circular display.

Key features

• Driver IC: HX8379-C
• IPS technology with All O'Clock viewing angle
• Supports 16.7 million colors
• 70% color gamut
• White LED backlight (6 LEDs)

Basic Specifications
Display Size : 2.47 inch
LCD Type : TFT-LCD, Transmissive, Normally Black
Resolution : 480 (RGB) × 480
Active Area : 62.64 × 62.64 mm (Circle)
Outline Dimensions : 69.19 × 71.74 × 2.45 mm
Pixel Pitch : 0.1305 × 0.1305 mm
Viewing Direction : All O'Clock (IPS)
Driver IC : HX8379-C
Interface : MIPI DSI (2-Lane)
Display Colors : 16.7M Colors
Color Gamut : 70%
Backlight : White LED × 6
IOVCC : 1.8 V Typ.
VCI : 3.3 V Typ.

Optical Characteristics
Resolution : 480 × 480
Contrast Ratio : 1000 : 1
Color Gamut : 70%
Brightness : 400 cd/m²
Luminance Uniformity : 70%
Viewing Angle (CR ≥ 10) : 85° / 85° / 85° / 85°
Response Time : 35 ms

Operating Conditions
Operating Temperature : -10°C ~ +60°C
Storage Temperature : -30°C ~ +70°C
Humidity : ≤90% RH (60°C)

Applications

• Wearable electronics
• Smart home devices
• Medical instruments
• Industrial human-machine interfaces (HMIs)
• Embedded systems requiring circular high-quality displays

Technical specifications

• Model: YX025Z6M-J80
• Display size: 2.47 inch
• Resolution: 480 (RGB) × 480
• LCD type: TFT-LCD, Transmissive, Normally Black
• Viewing direction: IPS (All O'Clock)
• Driver IC: HX8379-C
• Interface: MIPI DSI (2-Lane)
• Active area (circle): 62.64 × 62.64 mm
• Outline dimensions: 69.19 × 71.74 × 2.45 mm
• Pixel pitch: 0.1305 × 0.1305 mm
• Display colors: 16.7M
• Color gamut: 70%
• Brightness: 400 cd/m²
• Contrast ratio: 1000:1
• Response time: 35 ms
• Backlight: White LED × 6
• IOVCC: 1.8 V Typ.
• VCI: 3.3 V Typ.
• Operating temp: -10°C ~ +60°C
• Storage temp: -30°C ~ +70°C
• Humidity: ≤90% RH (60°C)
