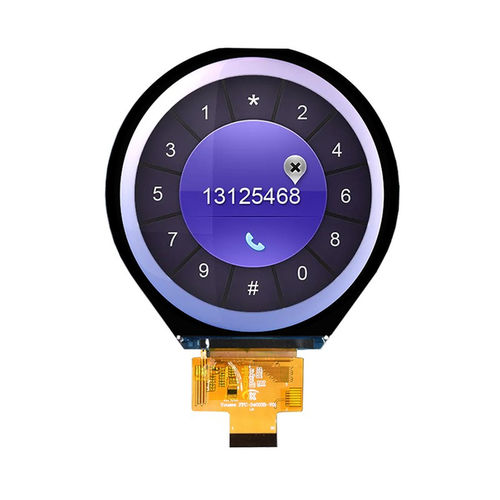

TFT LCD display module YX34003A

IPScolor800 x 800

Overview
The YX34003A is a 3.4-inch round TFT-LCD module with 800×800 RGB resolution and a MIPI DSI interface. It incorporates an IPS wide-view panel (All O'Clock), JD9365DA driver IC and an 8-LED white backlight, and is intended for integration in smart home devices, industrial control panels, medical instruments and embedded HMI/AI terminals.

Key features

• 3.4 inch round TFT-LCD
• Resolution: 800 (RGB) × 800
• Interface: MIPI DSI (high-speed)
• Driver IC: JD9365DA
• Viewing: IPS All O'Clock (wide viewing angle)
• Backlight: 8 × white LEDs
• Compatible with Linux, Android and high-performance embedded platforms

Basic specifications

• Display size: 3.4 inch
• LCD type: TFT-LCD, transmissive
• Active area: 87.6 × 87.6 mm
• Outline dimensions: 94.9 × 96.9 × 2.25 mm
• Pixel pitch: 0.1095 × 0.1095 mm
• Typical VCI: 3.2 V; Typical IOVCC: 1.8 V

Optical characteristics

• Resolution: 800 × 800
• Brightness: 500 cd/m²
• Contrast ratio: 800:1
• Color gamut: 60%
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° / 80° / 80° / 80°
• Response time: 25 ms

Operating conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Smart home devices
• Industrial control equipment and operator panels
• Medical instruments
• AI terminals and advanced embedded HMI

Technical specifications

• Model: YX34003A
• Display size: 3.4 inch (round)
• Resolution: 800×800 RGB
• Display type: Round TFT, transmissive
• Viewing technology: IPS (All O'Clock)
• Driver IC: JD9365DA
• Interface: MIPI DSI
• Active area: 87.6 × 87.6 mm
• Outline dimensions: 94.9 × 96.9 × 2.25 mm
• Backlight: 8 × white LEDs
• Typical VCI: 3.2 V; Typical IOVCC: 1.8 V
• Brightness: 500 cd/m²; Contrast ratio: 800:1; Response time: 25 ms
• Operating temperature: -20°C to +70°C; Storage: -30°C to +80°C
