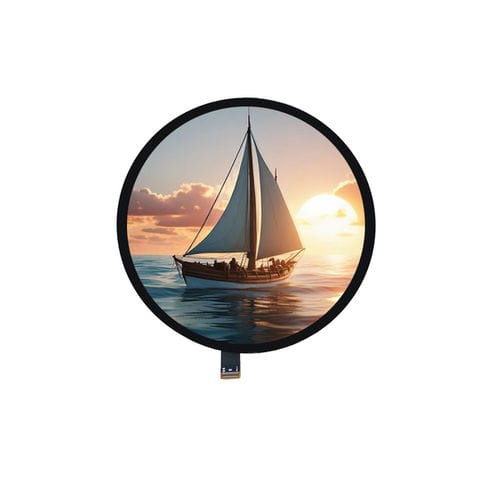

TFT LCD display module YX50049A

IPScolor1080 x 1080

Product Overview
The YX50049A is a 5.0-inch round LTPS TFT LCD module with 1080×1080 RGB resolution and MIPI DSI interface. It features an IPS viewing performance and an ultra-slim outline, suitable for embedded HMI, industrial control panels, medical displays, AI terminals and premium IoT devices requiring a circular active display.

Key Features

• Display Size: 5.0 inch
• Resolution: 1080 (RGB) × 1080
• Panel: LTPS TFT, transmissive (normally black)
• Interface: MIPI DSI
• Driver IC: HX8399-C
• Viewing: IPS (All O'Clock)
• Active Area: Ø127.008 mm
• Outline Dimension: 136.53 × 132.21 × 1.98 mm
• Colors: 16.7M, typical gamut 70%

Basic Specifications
Display Size: 5.0 inch
LCD Type: LTPS TFT, transmissive (normally black)
Resolution: 1080 (RGB) × 1080
Active Area: Ø127.008 mm
Outline Dimensions: 136.531 × 132.208 × 1.98 mm
Pixel Pitch: 0.1176 × 0.1176 mm
Viewing Direction: All O'Clock (IPS)
Driver IC: HX8399-C
Interface: MIPI DSI
Display Colors: 16.7 Million
Color Gamut: 70% typ.
Glass Thickness: 0.2 mm (single)

Optical Characteristics

• Resolution: 1080 × 1080
• Contrast Ratio: 1300:1 (typ.)
• Color Gamut: 70% NTSC (typ.)
• Brightness: 400 cd/m² (typ.)
• Luminance Uniformity: 70% (typ.)
• Viewing Angle (CR ≥ 10): 80° / 80° / 80° / 80°
• Response Time: 40 ms

Operating Conditions

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -30°C to +75°C
• Humidity: ≤90% RH (non-condensing)

Mechanical / Other

• Outline Dimension: 136.53 × 132.21 × 1.98 mm
• Round Active Area Diameter: 127.01 mm
• Glass Thickness: 0.2 mm (single)

Technical specifications

• Model: YX50049A
• Panel Technology: LTPS TFT, IPS
• Display Mode: Transmissive, normally black
• Pixel Pitch: 0.1176 × 0.1176 mm
• Colors: 16.7M
• Brightness: 400 cd/m² (typ.)
• Contrast Ratio: 1300:1 (typ.)
• Response Time: 40 ms
• Operating Temp: -20°C to +60°C
• Storage Temp: -30°C to +75°C
• Humidity: ≤90% RH (non-condensing)
