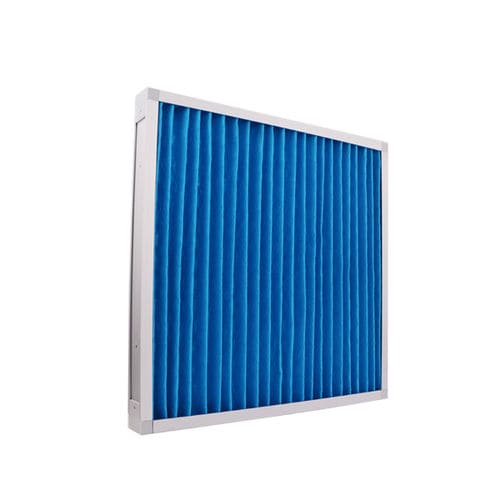

Air filter ZNCX-A(B)P
panelactivated carbondust

air filter
air filter
air filter
air filter
Add to favorites
Compare this product


Designed for
Filtration element
panel, activated carbon
G3, G4
Other characteristics
compact, metal mesh
Operating pressure

Min.: 0 Pa (0 psi)

Max.: 130 Pa (0.019 psi)


1,500 m³/h, 3,000 m³/h, 3,200 m³/h, 3,600 m³/h (52,972 ft³/h)


Product Name: letter frame primary air filter Product model: ZNCX-A(B)P Product introduction: The primary air filter for the mother frame is suitable for the primary filtration of the air conditioning system, and is mainly used for filtering dust particles of 5 μm or more. The frame material is mainly composed of aluminum frame, galvanized frame, stainless steel frame, etc. The filter materials include non-woven fabric, nylon mesh, activated carbon filter, metal mesh, aluminum rolled mesh, and the like. Product features: low price, light weight, good versatility and compact structure. Product selling point: replaceable filter material. Users can easily replace the filter material by themselves, saving users the cost of spare parts and reducing the hassle of shipping and storage. Frame material: paper frame, aluminum frame, galvanized frame. Sealant: Polyurethane glue. Use filter material: non-woven fabric, nylon mesh, activated carbon filter, metal mesh, aluminum rolled mesh. Separator: hot melt adhesive. Efficiency: G3, G4. Use environment: under normal temperature and pressure. Sealing strip: neoprene. Installation and maintenanceFeatures: 1: The frame is made of aluminum profile, and the unique support skeleton structure makes the filter material multi-pleat shape, which is convenient to replace and assemble, and has good versatility. 2: Lightweight construction, easy to handle and install. 3: After the end of use, you can replace the new filter material or clean the original source material to reduce the running cost. Application: 1: Pre-filtration of the centralized ventilation system of the clean room;
