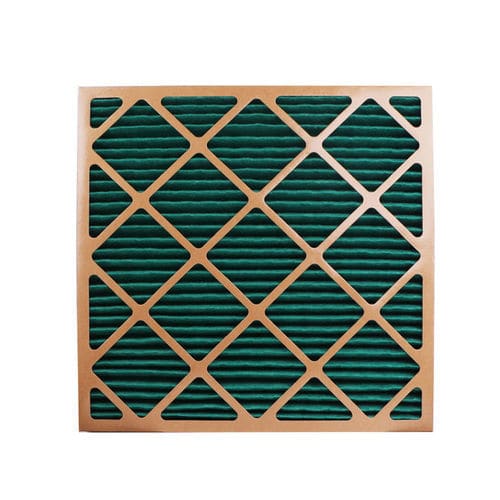

Air filter ZNCX-A(B) series
activated carbonplatebag

air filter
air filter
air filter
air filter
Add to favorites
Compare this product


Characteristics

Designed for
air
Filtration element
activated carbon, bag, plate
Applications
dust
Material
paper, nylon
Norms
G3, G4
Other characteristics
compact, high-efficiency, metal mesh
Filtration size

5 µm

Operating pressure

Min.: 40 Pa (0.006 psi)

Max.: 50 Pa (0.007 psi)

Flow

Min.: 1,500 m³/h (52,972 ft³/h)

Max.: 3,500 m³/h (123,601.334 ft³/h)

Description

Product Name: Paper frame initial effect air filter Product model: ZNCX-A(B)P Product introduction: The primary air filter is suitable for primary filtration of air conditioning systems and is mainly used to filter dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame material includes paper frame, aluminum frame and galvanized frame. The filter material includes non-woven fabric, nylon mesh, activated carbon filter and metal mesh. , aluminum rolling nets, etc. Product features: low price, light weight, good versatility and compact structure. Product selling point: replaceable filter material. Users can easily replace the filter material by themselves, saving users the cost of spare parts and reducing the hassle of shipping and storage. Main use: Primary filtration of air conditioning and ventilation systems, as well as simple air conditioning and ventilation systems requiring only one stage of filtration. Frame material: paper frame, aluminum frame, galvanized frame. Sealant: Polyurethane glue. Filter material: non-woven fabric, nylon mesh, activated carbon filter, metal mesh, aluminum rolled mesh. Efficiency: G3, G4. Environment: under normal temperature and pressure. Sealing strip: neoprene. Application: pre-filtration of central air conditioning and centralized ventilation systems; pre-filtration of large air compressors; pre-filtration of clean return air systems and local high-efficiency filtration devices. Application: pre-filtration of central air conditioning and centralized ventilation systems; pre-filtration of large air compressors; pre-filtration of clean return air systems
