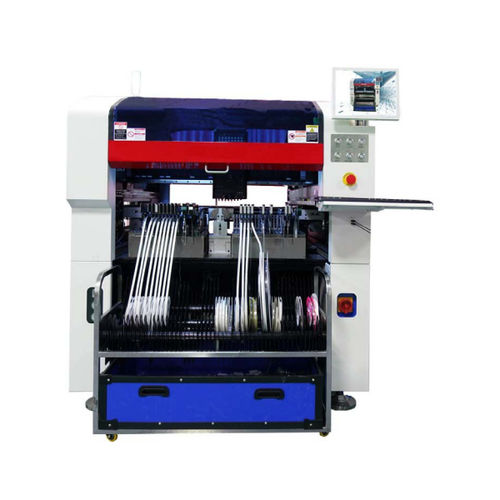

SMT pick-and-place machine ZM-400

Pick and Place Machine ZM-400 Large, precise component placement range Dual vision systems provide efficiency and flexibility. ZM-400 places SMDs from 0201 to 100 mm x 150 mm, including BGAs, MBGAs, CSPs and µBGAs, micro lead frames (MLFs), flip chips, ultra-fine pitch to 15 mil and odd-form components. Cognex® on-the-fly and bottom vision alignment systems ensure accurate alignment of component connection points (leads, balls, bumps) to pads, with ±0.05 mm placement accuracy and ±0.01 mm repeatability. Move quickly from prototyping to production Generous placement area leaves room for waffle trays and/or cut tape strips. With placement rates of 2,500 cph (IPC 9850), up to 64 feeder slots, and quality components such as X-Y linear encoders and smart feeders, users can move from prototype into production on the same machine, saving programming and job setup time. System software will optimize your feeder locations and placement sequences to achieve the greatest possible throughput. Learn more about MC series feeders. Mistake-proof process thanks to intelligent, feature-rich software Field-proven software features many advanced functions as standard Programming this Windows®-based system is easy with its expandable component library, universal CAD data import, and teaching programming. The component library not only covers all common component package types and sizes, including resistors, capacitors, diodes, SOTs, PLCCs, QFPs, SOJs, SOPs, etc., but also links to the Smart Feeder software for easy feeder setup and inventory control.
