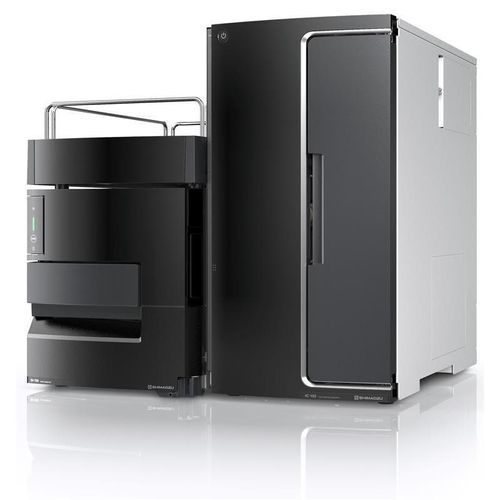

IC chromatograph Nexera IC

ionfor environmental analysislaboratory

Overview
The Nexera IC ion chromatograph combines a compact footprint with advanced automation and integrated IC Support software to streamline routine workflows. Designed for standard methods and daily water analysis, it reduces manual intervention and troubleshooting and helps laboratories obtain consistent, regulation‑ready results.

Highlights

• Regulation‑ready ion chromatography for routine water analysis
• Automation of eluent handling, sample pretreatment, start‑up, QC checks and data evaluation
• Automatic sample dilution with IC Solution to reduce repeat measurements
• Compact, maintenance‑friendly layout with easy access to pumps, suppressors and autosampler consumables
• Operator support via IC Support app within LabSolutions LC/GC, training tools and Shimadzu expertise

Key Features

• Configurable with anion or cation electrodialytic membrane suppressor; optional dual IC configuration for simultaneous anion and cation analysis
• Intelligent workflows for eluent preparation, sample pretreatment, start‑up, system checks and data evaluation
• Automatic dilution and sample handling functions to minimise re‑runs
• Integrated IC Support app providing interactive guidance, maintenance videos and consumables monitoring
• Sampling rate 1–100 Hz and CDD measurement up to 20,000 µS/cm with automatic gain switching

Quick specs
Dimensions (WxHxD): 260 mm × 500 mm × 490 mm (no reservoir tray)
Available pH range: pH 1–14
Flow rate settings range: 0.0001–5.0000 mL/min
Temperature range: ambient −10 to 85 °C
Storage space: up to one 5 cm guard column and one 25 cm column (column preheater included as standard)
CDD measurement range: up to 20,000 µS/cm, automatic gain switching
Sampling rate: 1–100 Hz
Suppressor: electrodialytic membrane suppressors available for both anion and cation suppression

Application highlights

• Water analysis according to EPA 300.1 and other standard methods
• Determination of counter ions in synthetic peptides
• Ammonia analysis according to ISO 14687
• AOF analysis according to EPA 1621

Technical specifications

• Model: Nexera IC
• Dimensions (WxHxD): 260 mm × 500 mm × 490 mm (no reservoir tray)
• pH range: 1–14
• Flow rate: 0.0001–5.0000 mL/min
• Operating temperature: ambient −10 to 85 °C
• Column capacity: up to one 5 cm guard column and one 25 cm column (column preheater included)
• CDD measurement range: up to 20,000 µS/cm with automatic gain switching
• Sampling rate: 1–100 Hz
• Suppressors available: electrodialytic membrane suppressors for anion and cation
• Software/integration: IC Support integrated in LabSolutions LC/GC
