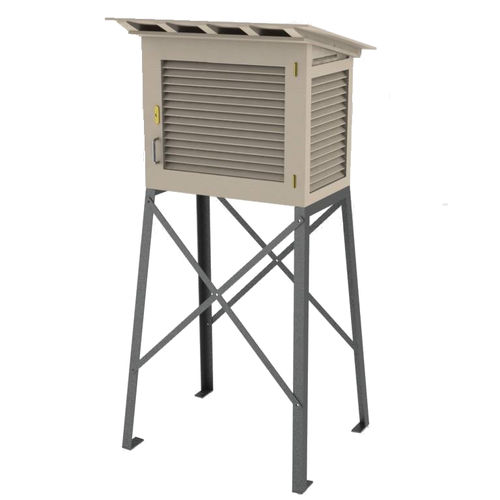

Shielded cabinet p028a CAP1

The structure of the shed is built in larch wood like the side shutters, while the lower and covering panels are in phenolic plywood. All painted in such a way as to guarantee maximum reflection power of thermal radiation. The roof, with an air gap that increases thermal insulation, is protected with a zinc plate. The large front door allows a convenient opening for access to the instruments and is equipped with a handle and a key lock. The support stand (PMM-P028A-01-SCAP1) is made up of a steel structure (angular 50×50 s=5 mm) with double cross to guarantee its stability. To fix the shed to the ground, plugs with screws are provided to be embedded in the concrete.
