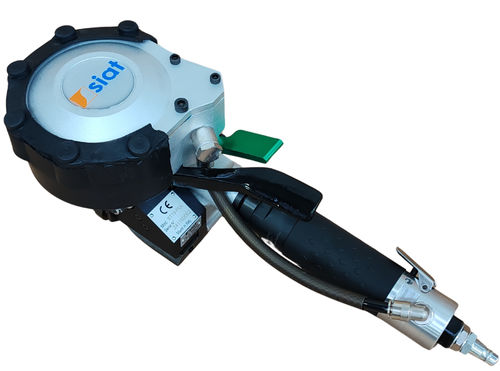

Pneumatic strapping tool ST 10-13-16-19

for steel strapswith seal

Product overview
Pneumatic strapping tool for steel strap with seal. Light, compact and easy to use, designed for medium/light industrial applications. Available in four strap widths (10 mm, 13 mm, 16 mm, 19 mm). Standard push-button configuration; choke collar version available on request. Equipped with new pneumatic BOSCH motors for reliable performance.

Advantages

• Modern, ergonomic design
• Lightweight (approx. 4 kg) for operator handling
• Multiple configurations to suit application needs
• New pneumatic BOSCH motors for consistent operation
• Simple operation and maintenance

Key features

• Package type: flat and round surfaces
• Strap width: 10 mm – 19 mm
• Strap thickness: 0.4 mm – 0.8 mm (Rmax. 800 N/mm²); 0.4 mm – 0.63 mm (Rmax. 950 N/mm²)
• Max. tension: 3000 N – 4500 N
• Tensioning speed: 5 – 7 m/min
• Joint type: overlap with seal – single notch (min. length 22 mm)
• Air pressure: 6 – 7 bar
• Air consumption: 12 l/s
• Weight: about 4 kg
• Configurations: standard push button; choke collar version on request

Options

• Suspension bracket kit

Ideal for

• Metal & glass industry

Technical specifications

• Model/Series: ST 10-13-16-19
• Type: Pneumatic strapping tool for steel strap with seal
• Package type: flat / round surfaces
• Strap width: 10 mm – 19 mm
• Strap thickness: 0.4 mm – 0.8 mm (Rmax. 800 N/mm²); 0.4 mm – 0.63 mm (Rmax. 950 N/mm²)
• Max. tension: 3000 N – 4500 N
• Tensioning speed: 5 – 7 m/min
• Joint type: overlap with seal – single notch (min. length 22 mm)
• Air pressure: 6 – 7 bar
• Air consumption: 12 l/s
• Weight: about 4 kg
• Configurations: standard push button; choke collar version on request
• Accessories/Options: Suspension bracket kit
